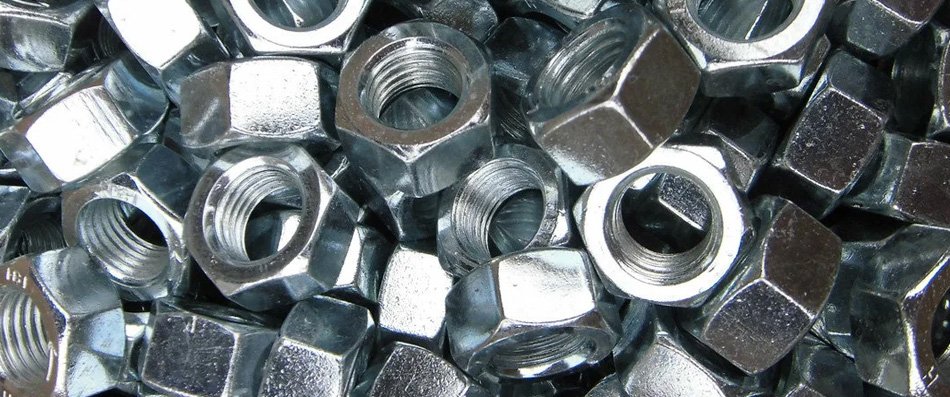

ASTM A194 GR.8MLCuN Fasteners
ASTM A194 Gr 8MLCuN Hexagon Nuts, ASTM A194 Gr 8MLCuN Slotted Hex Nuts, Stainless Steel ASTM A194 Grade 8MLCuN Hex Head Nut, ASTM A194 Gr.8MLCuN Industrial Hex Nuts, Suppliers of ASTM A194 Grade 8MLCuN Hex Nut, ASTM A194 Gr.8MLCuN Heavy Hex Nuts
Vintex Steel & Engg. Co. is one of the prominent manufacturers, dealers, traders, exporters and sellers of ASTM A194 Grade 8 MLCuN Fasteners, which are weldable, machinable and formable.
Enhanced ranges of key elements, molybdenum and chromium, plus the addition of nitrogen give Fasteners significantly stepped forward pitting and crevice corrosion resistance in chlorides. ASME SA 194 Grade 8 MLCuN Nuts has a very good weldability and the techniques used for welding traditional austenitic steels are used. It is regularly used as an alternative in vital additives of large structures wherein metal has failed through pitting, crevice attack, or chloride pressure corrosion cracking. It is appropriate to be used in chemical processing industries, fueloline platform method and offshore oil structures and desalination gadget.
ASTM A194 Stainless Steel Grade 8MLCuN Machine Hex Nuts, ASTM A194 Gr. 8MLCuN Finished Hex Nuts, Stainless Steel A194 Gr 8MLCuN Long Hex Nut Stockist, ASTM A194 Grade 8MLCuN Hex Nuts Supplier, ASTM A194 Gr.8MLCuN Coupling Nuts, ASTM A194 Gr 8MLCuN Heavy Hex Nuts, ASTM A194 Gr.8MLCuN Heavy Hexagon Nuts, ASTM A194 Grade 8MLCuN Hex Jam Nuts, ASTM A194 Gr. 8MLCuN Hexagonal Nylon Lock Nut Manufacturer In India.
Table of Content
- Material Specification Chart Of ASTM A194 Gr 8MLCuN Fasteners
- Most Commonly used ASTM A194 Gr 8MLCuN Fasteners Types
- ASTM A194 Gr 8MLCuN Fasteners Available Standards
- Size Chart of ASTM A194 Grade 8MLCuN Nuts
- ASTM A194 Gr 8MLCuN Nut Weight Chart
- Dimensions of ASTM A194 Grade 8MLCuN Hex Nuts
- ASTM A194 Grade 8MLCuN Heavy Hex Nut Dimensions
- Stock List Of ASTM A194 Gr 8MLCuN Fasteners
- Chemical Composition of ASTM A194 Gr 8MLCuN Fasteners
- Mechanical Properties of ASTM A194 Gr 8MLCuNFasteners
- ASTM A194 Gr 8MLCuN Fasteners Uses and Application
- ASTM A194 Gr 8MLCuN Fasteners Export Countries
It is excessive alloyed austenitic steel with excellent corrosion resistance, and is regularly called a grade because of the molybdenum content. It is likewise utilized in flue fueloline desulfurization scrubbers, pulp mill bleach structures, and tall oil distillation columns. It is austenitic metal designed for max resistance to pitting and crevice corrosion. Due to its austenitic microstructure, ASTM A194 Grade 8 MLCuN Hex Nuts has superb effect electricity each at room temperature and at cryogenic temperatures. It has fantastic well-known corrosion resistance to sulfuric acid and to chloride pressure corrosion cracking. It is an iron – base and austenitic alloy with fantastic corrosion resistance to a huge variety of media.
We deliver our Fasteners for quite a few packages and could assist in figuring out an appropriate quantity to your contemporary project. ASME SA 194 Grade 8 MLCuN Heavy Hex Nuts are regularly utilized in gadget for the manufacture of artificial rubber, natural and heavy chemicals, plastics, pharmaceuticals, petroleum products, solvents and explosives, etc. It is as nicely utilized in Mixing tanks, Process piping, Heat exchangers, and more, wherein those packages are restricted to a most temperature of a thousand Degree F in step with ASME. At thirty-3 percentage of nickel content, it has sensible immunity to chloride pressure corrosion cracking. It gives customers a huge type of benefits which includes ease of fabrication and accelerated mechanical properties.
Material Specification Chart Of ASTM A194 Gr 8MLCuN Fasteners
| Dimensions | ASME B18.2.1, B18.3 |
|---|---|
| Size | Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Length | 3 mm to 200 mm |
| Hex Nuts | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive | Six-Lobe,Phillips,Phillips/Slot, Slotted etc |
| Surface Coating | Ptfe Coated Nuts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
ASTM A194 Gr 8MLCuN Raw Material
| STANDARD | Grade | Designation |
| ASTM A194 | GR.8MLCuN | Solution Annealed 6 Moly / SMO 254 Stainless Steel |
Most Commonly used ASTM A194 Gr 8MLCuN Fasteners Types
ASTM A194 Gr 8MLCuN Heavy Hex Nut
- ASTM A194 Stainless Steel Gr 8MLCuN Heavy Hex Nuts
- ASTM A194 Stainless Steel Gr 8MLCuN Heavy Hex Nut
- SS Gr.8MLCuN Heavy Hex Nut
- ASTM A194 Grade 8MLCuN Heavy Duty Nuts
- ASTM A194 Grade 8MLCuN Heavy Hex Nuts
- ASTM A194 Gr 8MLCuN Heavy Hex Nut
- Stainless Steel ASTM A194 Gr.8MLCuN Heavy Hex Nut
ASTM A194 Gr 8MLCuN Hex Nut
- ASTM A194 Grade 8MLCuN Cap Nuts
- ASTM A194 Gr.8MLCuN Eye Nuts
- ASTM A194 Stainless Steel Gr 8MLCuN Hex Nut
- Stainless Steel ASTM A194 Gr.8MLCuN Hex Nut
- SS Gr.8MLCuN High Tensile Hex Nut
- ASTM A194 Stainless Steel Gr 8MLCuN Wing Nuts
- ASTM A194 Gr 8MLCuN Machine Hex Nut
ASTM A194 Gr 8MLCuN Hex Flange Nut
- SS Gr.8MLCuN Flange Lock Nuts
- ASTM A194 Stainless Steel Gr 8MLCuN Hex Flange Nut
- ASTM A194 Stainless Steel Gr 8MLCuN Flange Hex Nuts
- ASTM A194 Gr 8MLCuN Hex Flange Nut
- ASTM A194 Grade 8MLCuN Flange Lock Nuts
- ASTM A194 Grade 8MLCuN Flange Hex Nuts
- Stainless Steel ASTM A194 Gr.8MLCuN Hex Flange Nut
ASTM A194 Gr 8MLCuN Hex Coupling Nut
- ASTM A194 Stainless Steel Gr 8MLCuN Hex Coupling Nut
- ASTM A194 Grade 8MLCuN Hex Coupling Nuts
- ASTM A194 Stainless Steel Gr 8MLCuN Long Hex Nut
- SS Gr.8MLCuN Coupling Hex Nut
- ASTM A194 Gr 8MLCuN Hex Coupling Nut
- Stainless Steel ASTM A194 Gr.8MLCuN Long Hex Nut
- ASTM A194 Grade 8MLCuN Hex Coupling Nut
ASTM A194 Gr 8MLCuN Fasteners Available Standards
| DIN Nuts | Hexagon Nuts |
|---|---|
| Din 315 Wing Nut | DIN 934 Finished Hex Nut |
| DIN 985 Hex Nylon Insert Lock Nut | DIN 980V Hex Steel Prevailing Torque Lock Nut |
| DIN 8334 Rod Coupling Nut | DIN 8923 Hex Flange Nut |
| Din 431 Nuts | BS 1768 |
| Din 555 Nuts | BS 1769 |
| Din 557 Nuts | BS 1083 |
| Din 562 Nuts | BS 3692 |
| Din 582 Nuts | ISO 4032 |
| Din 934 Nuts | ISO 4033 |
| Din 936 Nuts | ANSI B18.2.2 |
| Din 1587 Nuts | |
| Din 6923 Nuts |
We are One Of The Most Trusted Supplier Of ASTM A194 GR.8MLCuN Fasteners in India. For final ASTM A194 Grade 8MLCuN Hex Nuts Price List. Please Call on +91 22 6636 2645 or drop an E-Mail : sales@vintexsteel.com
Other Related Products
Size Chart of ASTM A194 Grade 8MLCuN Nuts
| Nuts Size (mm) |
Diameter* (mm) |
Height (mm) |
||
|---|---|---|---|---|
| Hex Nuts | Jam Nuts | Nylock Nuts | ||
| 2 | 4 | 1.6 | 1.2 | – |
| 2.5 | 5 | 2 | 1.6 | – |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | – |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |
| * This is the diameter across the flats. It is also the size of wrench to use. | ||||
ASTM A194 Gr 8MLCuN Nut Weight Chart
| Size | Finished Hex | Heavy Hex | Finished Jam | Heavy Hex Jam | Square | Heavy Square |
|---|---|---|---|---|---|---|
| 1/2″ | 3.750 | 6.540 | 2.620 | 4.000 | 5.780 | 7.870 |
| 5/8″ | 7.330 | 11.900 | 4.930 | 6.960 | 10.800 | 14.300 |
| 3/4″ | 11.900 | 19.300 | 7.700 | 11.000 | 15.400 | 23.500 |
| 7/8″ | 19.000 | 29.700 | 12.000 | 16.700 | 24.500 | 36.200 |
| 1″ | 28.300 | 42.500 | 17.600 | 23.500 | 36.300 | 51.500 |
| 1-1/8″ | 40.300 | 59.200 | 24.700 | 32.400 | 52.500 | 72.400 |
| 1-1/4″ | 54.300 | 78.600 | 36.100 | 45.800 | 70.600 | 95.500 |
| 1-3/8″ | 73.000 | 102.000 | 47.900 | 59.300 | 94.500 | 125.000 |
| 1-1/2″ | 94.300 | 131.000 | 60.900 | 74.800 | 122.000 | 161.000 |
| 1-5/8″ | 162.000 | 91.600 | ||||
| 1-3/4″ | 151.000 | 204.000 | 100.000 | 114.000 | ||
| 1-7/8″ | 241.000 | 134.000 | ||||
| 2″ | 224.000 | 299.000 | 140.000 | 165.000 | ||
| 2-1/4″ | 419.000 | 227.000 | ||||
| 2-1/2″ | 564.000 | 332.000 | ||||
| 2-3/4″ | 738.000 | 429.000 | ||||
| 3″ | 950.000 | 545.000 | ||||
| 3-1/4″ | 1194.000 | 651.000 | ||||
| 3-1/2″ | 1526.000 | 851.000 | ||||
| 3-3/4″ | 1812.000 | 1005.000 | ||||
| 4″ | 2180.000 | 1200.000 |
Dimensions of ASTM A194 Grade 8MLCuN Hex Nuts
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
| Width Across Flats | Width Across Corners | Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 Hex Nuts | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 Hex Nuts | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 Hex Nuts | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .320 |
| 7/16 Hex Nuts | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 Hex Nuts | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 Hex Nuts | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 Hex Nuts | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 Hex Nuts | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 Hex Nuts | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 Hex Nuts | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 Hex Nuts | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 Hex Nuts | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 Hex Nuts | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.317 | 1.245 |
| 1-5/8 Hex Nuts | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 Hex Nuts | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 Hex Nuts | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 Hex Nuts | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 Hex Nuts | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 Hex Nuts | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
ASTM A194 Grade 8MLCuN Heavy Hex Nut Dimensions
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
| Width Across Flats | Width Across Corners | Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 Heavy Hex Nut | .2500 | 1/2 | .500 | .488 | .577 | .556 | 15/64 | .250 | .218 |
| 5/16 Heavy Hex Nut | .3125 | 9/16 | .562 | .546 | .650 | .622 | 19/64 | .314 | .280 |
| 3/8 Heavy Hex Nut | .3750 | 11/16 | .688 | .669 | .794 | .763 | 23/64 | .377 | .341 |
| 7/16 Heavy Hex Nut | .4375 | 3/4 | .750 | .728 | .866 | .830 | 27/64 | .441 | .403 |
| 1/2 Heavy Hex Nut | .5000 | 7/8 | .875 | .850 | 1.010 | .969 | 31/64 | .504 | .464 |
| 9/16 Heavy Hex Nut | .5625 | 15/16 | .938 | .909 | 1.083 | 1.037 | 35/64 | .568 | .526 |
| 5/8 Heavy Hex Nut | .6250 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 39/64 | .631 | .587 |
| 3/4 Heavy Hex Nut | .7500 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.382 | 47/64 | .758 | .710 |
| 7/8 Heavy Hex Nut | .8750 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 55/64 | .885 | .833 |
| 1 Heavy Hex Nut | 1.0000 | 1-5/8 | 1.325 | 1.575 | 1.876 | 1.796 | 63/64 | 1.012 | .956 |
| 1-1/8 Heavy Hex Nut | 1.1250 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 1-7/64 | 1.139 | 1.079 |
| 1-1/4 Heavy Hex Nut | 1.2500 | 2 | 2.000 | 1.938 | 2.309 | 2.209 | 1-7/32 | 1.251 | 1.187 |
| 1-3/8 Heavy Hex Nut | 1.3750 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 1-11/32 | 1.378 | 1.310 |
| 1-1/2 Heavy Hex Nut | 1.5000 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1-15/32 | 1.505 | 1.433 |
| 1-5/8 Heavy Hex Nut | 1.6250 | 2-9/16 | 2.562 | 2.481 | 2.959 | 2.828 | 1-19/32 | 1.632 | 1.556 |
| 1-3/4 Heavy Hex Nut | 1.7500 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-23/32 | 1.759 | 1.679 |
| 2 Heavy Hex Nut | 2.0000 | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-31/32 | 2.013 | 1.925 |
| 2-1/4 Heavy Hex Nut | 2.2500 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 2-13/64 | 2.251 | 2.155 |
| 2-1/2 Heavy Hex Nut | 2.5000 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 2-29/64 | 2.505 | 2.401 |
| 2-3/4 Heavy Hex Nut | 2.7500 | 4-1/4 | 4.250 | 4.112 | 4.907 | 4.688 | 2-45/64 | 2.759 | 2.647 |
| 3 Heavy Hex Nut | 3.0000 | 4-5/8 | 4.625 | 4.475 | 5.340 | 5.102 | 2-61/64 | 3.013 | 2.893 |
| 3-1/4 Heavy Hex Nut | 3.2500 | 5 | 5.000 | 4.838 | 5.774 | 5.515 | 3-3/16 | 3.252 | 3.124 |
| 3-1/2 Heavy Hex Nut | 3.5000 | 5-3/8 | 5.375 | 5.200 | 6.207 | 5.928 | 3-7/16 | 3.506 | 3.370 |
| 3-3/4 Heavy Hex Nut | 3.7500 | 5-3/4 | 5.750 | 5.562 | 6.640 | 6.341 | 3-11/16 | 3.670 | 3.616 |
| 4 Heavy Hex Nut | 4.0000 | 6-1/8 | 6.125 | 5.925 | 7.073 | 6.755 | 3-15/16 | 4.014 | 3.862 |
Test Certificates Of ASTM A194 Gr 8MLCuN Fasteners
- Mill Test Report
- Raw Materials Certificate
- EN 10204/3.1B
- Third Party Inspection Report
- 100% Radiography Test Report
Chemical Composition of ASTM A194 Gr 8MLCuN Fasteners
| C, % | Mn, % | Ph, % | S, % | Si, % | Cr, % | Ni, % | Mo, % | N, % | Other Elements, % |
|---|---|---|---|---|---|---|---|---|---|
| 0.020 | 1.000 | 0.030 | 0.010 | 0.800 | 19.5-20.5 | 17.5-18.5 | 6.0-6.5 | 0.18-0.25 | Copper 0.50-1.00 |
Mechanical Properties of ASTM A194 Gr 8MLCuN Fasteners
| Grade & Type | Brinell Hardness | Rockwell Hardness | |
|---|---|---|---|
| C Scale | B Scale | ||
| 8MLCuN | 126-300 | 32 max | 60 min |
ASTM A194 Gr 8MLCuN Fasteners Uses and Application
- Nuclear Energy Sector
- Offshore & Chemical Industry
- Engineering & Aerospace Industry
- Automotive industry
- Oil & Gas Industries
- Power Generation
- Architectural Trim and Molding
- Kitchen Benches, Sinks, Equipment
- Food Processing Equipment
