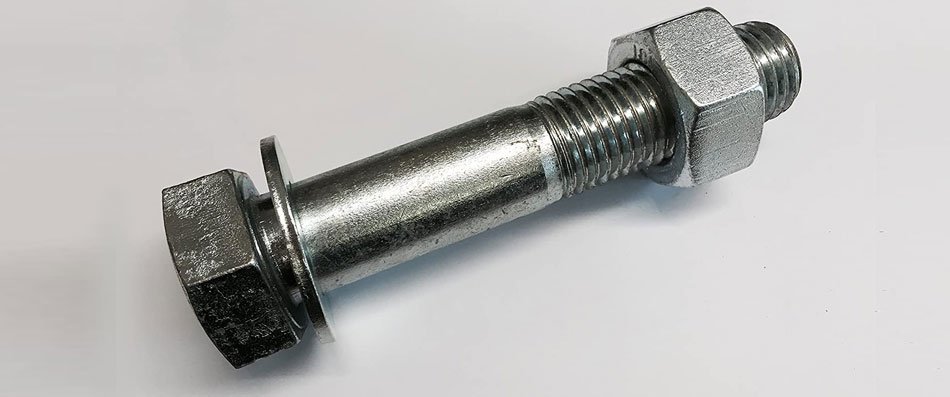

Nickel Alloy 200 / 201 Hex Bolt

Nickel Alloy 200 Industrial Hex Bolts, Nickel 200 Hexagonal Bolts, Alloy 201 Hex Cap Screw, Nickel 200 Heavy Hex Bolts, Suppliers of Alloy 200 Hex Bolts, Alloy 200 Hex Head Bolt, 200 Nickel Alloy Hex Bolts, Nickel Alloy 201 Flanged Hex Bolts At Factory Price In India.

Nickel Alloy 200 / 201 Hex Bolt
Vintex Steel & Engg. Co. is a renowned manufacturer and distributor of Nickel Alloy 200 / 201 Hex Bolts, which are proof against SCC and has excessive power. It gives an evaluation of the corrosion resisting characteristics. Applications of Hex Bolts are used within the chemical and marine industries encompass tubes and tube-sheets for condensers, warmth exchangers and evaporators. Nickel UNS N02200 Hex Bolts resists corrosion with the aid of using speedy shifting water, wherein in spite of its excessive copper content material, it’s far silver in colour. They also are utilized in Desalination Plants, Power Generation, Offshore Oil and Gas, Shipbuilding and Ship Repair, Marine Antimicrobial and Boat Hulls programs. The main, wrought Hex Bolts selected for sea water provider incorporate 10 percentage nickel.

Nickel Alloy 200 Hex Machine Bolt, Alloy 201 Self Sealing Hex Bolts, 2.4068 Heavy Hex Bolt Supplier, Alloy 200 Full Threaded Hex Bolt, 2.4066 Hexagonal Head Bolt, UNS N02200 Half Threaded Hex Bolt, Nickel Alloy 200 Hex Bolts Manufacturer, Nickel 200 Hex Head Shoulder Bolt Stockist, Nickel Alloy 200 High Tensile Hex Bolts, UNS N02201 Hex Bolts Manufacturer In India.

Table of Content

The excessive oxidation resistance of Hex Bolts is seen in wet air and steam, which similarly gives notable fabrication and welding properties. Nickel UNS N02201 Hex Bolts is a copper-nickel alloy with an alpha segment structure, that is similarly a copper-primarily based totally alloy evolved as a cost-powerful substitute. The inclusion of managed portions of iron and manganese give Hex Bolts erosion and impingement because of turbulent water containing air bubbles and silt flowing at excessive velocities. It is the low resistivity alloy used at temperature variety as much as three hundred Degree C (570 Degree F).

There are numerous versions in composition giving different alloys in the within Hex Bolts, wherein a small content material of iron is vital for fine performance. Nickel WNR 2.4068 Hex Bolts includes best one segment because the copper nickel binary gadget famous entire stable solubility. Even as set up alloys, know-how of Fittings evolves similarly as new programs arise, production strategies change, appreciation of corrosion evaluation and tracking progresses, and engineers new to the product offer special perspectives. They are thermally strong and own slight power even if the temperature is excessive. It unearths its best software in regions of excessive temperatures and pressures mixed with excessive pace and unfavourable turbulence. Due to its entire resistance toward marine organisms along with barnacles, it’s far generally utilized in seawater piping systems.

Material Specification Chart Of Nickel Alloy 200 / 201 Hex Bolts

International Dimensions StandardDIN 933, DIN 931, DIN-EN14399-4, DIN 601, ISO 4016, IS1364, ISO 4014, ISO 4017, BS 1768, BS 1083, ASME B18.2.1, JIS B1180, DIN 558, ISO 4018, CSN 21301, EU 24016, DIN 7968, DIN7990
Manufacturing Method
  • Cold Forming Hex Bolt: M2 to M24
  • Hot Forging Hex Bolt: M24 to M100
Metric Sizes
  • Dia: M10 – M110
  • Length: 12 – 1200MM
Length 3 mm to 200 mm or custom
US ThreadsMETRIC, BSW, BSF, Unified national coarse (UNC), Unified national fine (UNF), Unified national extra fine (UNEF), UNJC and UNJF threads, UNK threads, UNR threads, Constant-pitch threads
UTS – Unified Thread StandardUNC, UNF, NPT, UNS, UNEF, NPTF
Heads and drive stylePhillips/ Slot, Phillips, indented hex head, Oval, Pan, Flat 82 degree, Round, flat undercut, Truss, binding, flat head 100 degree, Slotted, fillister head, Six-Lobe
Manufacturing processWire Drawing, Insert tapping, Cold Heading, Heat Treatment, Inspection, Surface Plating, Packing
Standard
  • ANSI B 28.2.4 1M/ B 18.2.4 2M
  • ANSI – American National Standards Institute
  • GB/T5783, GB/T5782, GB5783
  • American ASME
  • Indian IS
  • International ISO
  • American SAE
  • German DIN
  • Spanish CSN
  • British BS
  • Italian UNI
  • Polish PN
  • European EU
Hex Bolts Surface Coating
  • Ptfe Coated Hex Bolts
  • Hot Dipped Galvanized
  • Phosphate
  • Teflon
  • Xylon
  • Zinc Phosphate
  • Manganese Phosphate
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)
  • ZAC (Zinc Alluminium Flake Coating)
  • Cadmium
Hex Bolts Surface treatment
  • Polish
  • Passivation
  • Black oxide coating
  • Anodizing
  • Sand blasting
  • Rust preventive oil
  • Heat-disposing
  • Hot dip galvanized
  • Electroplating color
Test Certificates
  • EN 10204 / 3.1 MTC
  • ISO 898-1, ISO 898-2,
  • EN 14399-10
  • EN 14399-2
  • ISO 148-1, ISO 6508-1
ISO – International Organization for Standardization
  • ISO 4014 Hex Bolts
  • ISO 4017 Hex Head Screw
  • ISO 4032 Nut
  • ISO 4162 Flange Bolts
  • ISO 4161 Flange Nut

Nickel Alloy 200 / 201 Hex Bolts Equivalent Grade

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Nickel 200 2.4066 N02200 NW 2200 NA 11 НП-2 N-100M Ni 99.2
Nickel 201 2.4068 N02201 NW 2201 NA 12 НП-2 – LC-Ni 99

Most Commonly used Nickel Alloy 200 / 201 Hex Bolts Types

Hexagon Bolt
Nickel Alloy Hexagon Bolt

  • 2.4068 M6 Hexagon Bolt
  • Alloy 201 Hex Bolts
  • Alloy 200 Hexagon Bolt
  • UNS N02201 Hexagon Bolt
  • UNS N02201 Hex Bolt
  • Nickel Alloy 200 Hexagon Bolt
  • 2.4066 Hexagon Bolts

Hex Head Bolt
Nickel Alloy Hex Head Bolt

  • UNS N02201 Hex Head Bolt
  • Nickel Alloy 200 Hex Head Bolt
  • UNS N02200 Hex Head Bolts
  • 2.4068 M6 Hex Head Bolt
  • Nickel 201 Hex Head Bolt
  • Alloy 201 Hex Socket Head Bolt
  • 2.4066 Hex Head Screw Head Bolts

Hex Flange Bolt
Nickel Alloy Hex Flange Bolt

  • UNS N02201 Fully Threaded Hex Flange Bolts
  • Nickel Alloy 200 Hex Flange Bolt
  • 2.4066 Imperial Hex Flange Bolts
  • UNS N02200 Hex Flange Bolts
  • Alloy 201 Flange Head Bolts
  • Alloy 200 Metric Hex Flange Bolts
  • 2.4068 M6 Hex Flange Bolts

Hex Machine Bolt
Nickel Alloy Hex Machine Bolt

  • 2.4068 M6 Hex Machine Bolts
  • 2.4066 Hex Machine Bolts
  • UNS N02200 Hex Machine Bolts
  • Nickel Alloy 200 Hex Machine Bolt
  • Alloy 200 Hex Machine Bolts
  • Alloy 201 Hex Head Machine Bolts
  • UNS N02201 Hex Machine Bolts

Heavy Hex Bolt
Nickel Alloy Heavy Hex Bolt

  • UNS N02201 Heavy Hex Bolts
  • 2.4066 Heavy Hex Bolt
  • Nickel Alloy 200 Heavy Hex Bolt
  • Alloy 201 Heavy Hex Bolts
  • Nickel 200 Heavy Hex Bolt
  • UNS N02200 Heavy Hex Bolts
  • 2.4068 M6 Heavy Hex Bolts

Full Threaded Hex Bolt
Nickel Alloy Full Threaded Hex Bolt

  • 2.4068 M6 Full Threaded Hex Bolts
  • UNS N02200 Full Threaded Hex Bolts
  • UNS N02201 Full Threaded Bolts
  • Alloy 200 Full Threaded Hex Bolt
  • Nickel 201 Fully Threaded Hex Bolts
  • Nickel 200 Full Threaded Hex Bolt
  • 2.4066 Fully Threaded Hex Bolt

Half Threaded Hex Bolt
Nickel Alloy Half Threaded Hex Bolt

  • Alloy 201 Half Threaded Hex Bolts
  • Alloy 200 Half Threaded Hex Bolt
  • 2.4066 Half Threaded Hex Bolt
  • UNS N02200 Half Threaded Hex Bolts
  • Nickel 200 Half Threaded Hex Bolt
  • UNS N02201 Half Threaded Bolts
  • 2.4068 M6 Half Threaded Hex Bolts

Self Sealing Hex Bolt
Nickel Alloy Self Sealing Hex Bolt

  • 2.4068 M6 Self Sealing Hex Bolts
  • Alloy 201 Self Sealing Hex Bolts
  • UNS N02200 Self Sealing Hex Bolts
  • 2.4066 Self Sealing Hex Bolt
  • Alloy 200 Self Sealing Hex Bolt
  • UNS N02201 Self Threaded Bolts
  • Nickel 200 Self Sealing Hex Bolt

Nickel Alloy Hex Tap Bolt

  • Nickel Alloy 200 Hex Tap Bolt
  • Alloy 201 Hex Tap Bolts
  • 2.4066 Hex Tap Bolt
  • UNS N02200 Hex Tap Bolts
  • 2.4068 M6 Hex Tap Bolts
  • Nickel 200 Hex Tap Bolt
  • UNS N02201 Hex Tap Bolts

Hex Head Shoulder Bolt
Nickel Alloy Hex Head Shoulder Bolt

  • Alloy 201 Hex Socket Head Shoulder Bolt
  • UNS N02201 Hexagon Head Shoulder Bolts
  • 2.4066 Metric Shoulder Bolts
  • Alloy 200 Hex Head Shoulder Screw
  • UNS N02200 Socket Hexgagon Shoulder Bolt
  • Nickel 200 Hex Head Shoulder Bolt
  • 2.4068 M6 Hex Head Shoulder Bolts

Hex Cap Screw
Nickel Alloy Hex Cap Screw

  • Alloy 200 Hex Cap Screw
  • Nickel Alloy 200 Hex Cap Screw
  • Alloy 201 Hex Socket Head Cap Screws
  • 2.4066 Hex Cap Screw
  • 2.4068 M6 Hex Cap Screws
  • UNS N02201 Socket Head Cap Screws
  • UNS N02200 Hexagon Socket Head Cap Screw

Slotted Hex Bolts
Nickel Alloy Slotted Hex Bolts

  • UNS N02200 Slotted Hex Cap Screw
  • 2.4068 M6 Slotted Hex Bolts
  • Nickel 200 Slotted Hex Bolt
  • 2.4066 Hex Slotted Flange Bolts
  • UNS N02201 Slotted Hex Bolt
  • Alloy 201 Slotted Hex Head Bolt
  • Alloy 200 Fully Threaded Slotted Hex Bolt

We are One Of The Most Trusted Supplier Of Nickel Alloy 200 Hex Bolts in India. For final Alloy 201 Hex Bolt Price List. Please Call on +91 22 6636 2645 or drop an E-Mail : sales@vintexsteel.com

Other Related Products

Dimensions Of Nickel Alloy 200 / 201 Hex Bolts

Bolt Size A (max) B C (min) D E F
Thread Length
for Bolt Length
max min 6″ and
shorter		 over 6″
1/4″ 0.260 7/16 0.484 11/64 0.03 0.01 0.750 1.000
5/16″ 0.324 1/2 0.552 7/32 0.03 0.01 0.875 1.125
3/8″ 0.388 9/16 0.620 1/4 0.03 0.01 1.000 1.250
7/16″ 0.452 5/8 0.687 19/64 0.03 0.01 1.125 1.375
1/2″ 0.515 3/4 0.826 11/32 0.03 0.01 1.250 1.500
5/8″ 0.642 15/16 1.033 27/64 0.06 0.02 1.500 1.750
3/4″ 0.768 1-1/8 1.240 1/2 0.06 0.02 1.750 2.000
7/8″ 0.895 1-5/16 1.447 37/64 0.06 0.02 2.000 2.250
1″ 1.022 1-1/2 1.653 43/64 0.09 0.03 2.250 2.500
1-1/8″ 1.149 1-11/16 1.859 3/4 0.09 0.03 2.500 2.750
1-1/4″ 1.277 1-7/8 2.066 27/32 0.09 0.03 2.750 3.000
1-3/8″ 1.404 2-1/16 2.273 29/32 0.09 0.03 3.000 3.250
1-1/2″ 1.531 2-1/4 2.480 1 0.09 0.03 3.250 3.500
1-3/4″ 1.785 2-5/8 2.893 1-5/32 0.12 0.04 3.750 4.000
2″ 2.039 3 3.306 1-11/32 0.12 0.04 4.250 4.500
2-1/4″ 2.305 3-3/8 3.719 1-1/2 0.19 0.06 4.750 5.000
2-1/2″ 2.559 3-3/4 4.133 1-21/32 0.19 0.06 5.250 5.500
2-3/4″ 2.837 4-1/8 4.546 1-13/16 0.19 0.06 5.750 6.000
3″ 3.081 4-1/2 4.959 2 0.19 0.06 6.250 6.500
3-1/4″ 3.335 4-7/8 5.372 2-3/16 0.19 0.06 6.750 7.000
3-1/2″ 3.589 5-1/4 5.786 2-5/16 0.19 0.06 7.250 7.500
3-3/4″ 3.858 5-5/8 6.198 2-1/2 0.19 0.06 7.750 8.000
4″ 4.111 6 6.612 2-11/16 0.19 0.06 8.250 8.500

Dimensions of Alloy 200 / 201 Heavy Hex Bolt

Bolt Size A (max) B C (min) D E F
Thread Length
for Bolt Length
max min 6″ and
shorter		 over 6″
1/2″ 0.515 7/8 0.969 11/32 0.03 0.01 1.250 1.500
5/8″ 0.642 1-1/16 1.175 27/64 0.06 0.02 1.500 1.750
3/4″ 0.768 1-1/4 1.383 1/2 0.06 0.02 1.750 2.000
7/8″ 0.895 1-7/16 1.589 37/64 0.06 0.02 2.000 2.250
1″ 1.022 1-5/8 1.796 43/64 0.09 0.03 2.250 2.500
1-1/8″ 1.149 1-13/16 2.002 3/4 0.09 0.03 2.500 2.750
1-1/4″ 1.277 2 2.209 27/32 0.09 0.03 2.750 3.000
1-3/8″ 1.404 2-3/16 2.416 29/32 0.09 0.03 3.000 3.250
1-1/2″ 1.531 2-3/8 2.622 1 0.09 0.03 3.250 3.500
1-3/4″ 1.785 2-3/4 3.035 1-5/32 0.12 0.04 3.750 4.000
2″ 2.039 3-1/8 3.449 1-11/32 0.12 0.04 4.250 4.500
2-1/4″ 2.305 3-1/2 3.862 1-1/2 0.19 0.06 4.750 5.000
2-1/2″ 2.559 3-7/8 4.275 1-21/32 0.19 0.06 5.250 5.500
2-3/4″ 2.827 4-1/4 4.688 1-13/16 0.19 0.06 5.750 6.000
3″ 3.081 4-5/8 5.102 2 0.19 0.06 6.250 6.500

Dimensions of Alloy 200 / 201 Heavy Hex Structural Bolt

Bolt Size A B C D E
Radius of Fillet		 F
Thread Length		 G
Transitional
Thread Length		 Runout of
Bearing Surface
FIM
max min min max min max
1/2″ 0.515 0.482 7/8 0.969 5/16 0.031 0.009 1.00 0.19 0.016
5/8″ 0.642 0.605 1-1/16 1.175 25/64 0.062 0.021 1.25 0.22 0.019
3/4″ 0.768 0.729 1-1/4 1.383 15/32 0.062 0.021 1.38 0.25 0.022
7/8″ 0.895 0.852 1-7/16 1.589 35/64 0.062 0.031 1.50 0.28 0.025
1″ 1.022 0.976 1-5/8 1.796 39/64 0.093 0.062 1.75 0.31 0.028
1-1/8″ 1.149 1.098 1-13/16 2.002 11/16 0.093 0.062 2.00 0.34 0.032
1-1/4″ 1.277 1.223 2 2.209 25/32 0.093 0.062 2.00 0.38 0.035
1-3/8″ 1.404 1.345 2-3/16 2.416 27/32 0.093 0.062 2.25 0.44 0.038
1-1/2″ 1.531 1.470 2-3/8 2.622 15/16 0.093 0.062 2.25 0.44 0.041

Weight Chart Of Nickel Alloy 200 / 201 Hex Bolts

THREADS According to IS 1363/67
APPROX. WEIGHT IN KGS FOR 100 NOS
LENGTH in mm DIAMETER (METRIC)
M5 M6 M12 M8 M10 M16 M14 M20 M18 M22
16 0.448 0.743 1.590 3.211
20 0.598 0.812 4.892 1.711 3.411
25 0.660 0.897 5.252 1.871 3.660 8.170
30 0.737 1.010 5.574 2.070 3.912 10.707 9.690 18.657
35 0.804 1.120 5.974 2.271 4.223 11.416 10.000 19.608 16.026
40 0.881 1.230 6.410 2.470 4.533 12.107 10.288 20.747 16.667
45 0.958 1.340 6.859 2.671 4.840 12.821 10.504 21.739 17.241
50 1.030 1.450 7.299 2.870 5.155 13.624 11.261 22.727 17.857 28.409
55 1.560 7.740 3.071 5.464 14.409 11.628 23.810 18.868 30.120
60 1.670 8.183 3.270 5.774 15.244 12.255 25.126 20.000 32.051
65 1.781 8.621 3.472 6.083 16.026 12.626 26.455 21.008 34.014
70 1.890 9.058 3.671 6.394 16.835 12.987 27.778 22.124 35.461
75 2.000 9.506 3.873 6.702 17.606 13.228 29.070 23.256 39.063
80 2.111 10.000 4.072 7.013 18.248 13.889 30.303 24.510 40.000
90 10.917 4.472 7.634 19.841 14.925 33.113 26.042 41.667
100 11.820 4.873 8.251 21.459 16.340 35.714 27.778 46.296
110 12.723 8.881 23.041 17.730 38.168 31.250 47.170
120 13.624 9.506 24.631 18.797 40.984 32.895 50.000
130 14.535 10.101 26.316 20.000 43.478 34.722 52.632
140 15.432 10.707 27.933 20.833 46.296 35.461 55.556
150 16.340 11.312 29.412 22.222 48.544 37.594 58.824
160 17.241 11.905 31.056 24.272 50.505 40.984 61.728
170 18.116 12.500 32.680 53.191 64.935
180 19.011 13.123 34.247 26.882 55.556 67.568
190 19.920 13.736 35.971 58.140 70.423
200 20.833 14.327 37.594 29.586 60.976 49.020 73.529
220 22.624 15.528 40.650 65.789 79.365
240 24.510 16.722 43.860 71.429 84.746
250 25.381 17.301 45.455 74.627 87.719
260 26.316 17.921 47.170 76.923 90.909
280 28.090 19.157 50.505 81.967 98.039
300 29.940 20.325 53.763 87.719 104.167
320 31.646 56.818 92.593
340 33.557 60.241 98.039
360 35.211 63.291 104.167
380 37.037 66.667 108.696
400 39.063 69.444 113.636

Test Certificates Of Nickel Alloy 200 / 201 Hex Bolts

  • Mill Test Report
  • Raw Materials Certificate
  • EN 10204/3.1B
  • Third Party Inspection Report
  • 100% Radiography Test Report

Chemical Composition of Nickel Alloy 200 / 201 Hex Bolts

Grade C Mn Si S Cu Fe Ni
Nickel 200 0.15 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min
Nickel 201 0.02 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min

Mechanical Properties of Nickel Alloy 200 / 201 Hex Bolts

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Nickel 200 / 201 8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %

Nickel Alloy 200 / 201 Hex Bolts Uses and Application

  • Nuclear Energy Sector
  • Offshore & Chemical Industry
  • Engineering & Aerospace Industry
  • Automotive industry
  • Oil & Gas Industries
  • Power Generation
  • Architectural Trim and Molding
  • Kitchen Benches, Sinks, Equipment
  • Food Processing Equipment
application
application1
application2
application3
application4
Previous
Next

Nickel Alloy 200 / 201 Hex Bolts Export Countries

South Korea, Poland, Bangladesh, Oman, Bulgaria, Serbia, Spain, Yemen, Estonia, Brazil, Croatia, Algeria, France, Jordan, Malaysia, Afghanistan, Taiwan, Ukraine, Switzerland, Thailand, Kuwait, Sri Lanka, Argentina, Japan, Denmark, India, Greece, Iran, Bhutan, Pakistan, Ecuador, Israel, Canada, Mexico, Vietnam, Slovakia, Norway, Egypt, South Africa, Hungary, Czech Republic, Chile, Venezuela, Saudi Arabia, Indonesia, Belgium, Turkey, Ghana, Philippines, Austria, Mongolia, Nigeria, Italy, Iraq, Peru, Russia, Costa Rica, Azerbaijan, Bolivia, United States, Kazakhstan, China, Singapore, Portugal, Chile, Nigeria, Romania, Qatar, Belarus, Angola, Bahrain, Australia, Finland, Libya, Mexico, Iran, Gabon, Netherlands, Trinidad & Tobago,Tunisia, Lithuania, New Zealand, Hong Kong, Colombia, Morocco, Kenya, United Kingdom, Lebanon, United Arab Emirates, Poland, Sweden.
Nickel Alloy Fasteners
Fasteners
Product Categories
Have Any Questions ? Please feel free to contact us. We will get back to you with 2 business days. Or just call us now.
Contact Us
Buy Nickel Alloy 200 Hex Bolts and Alloy 201 Hex Head Bolt At Factory Price In India
Contact Now
