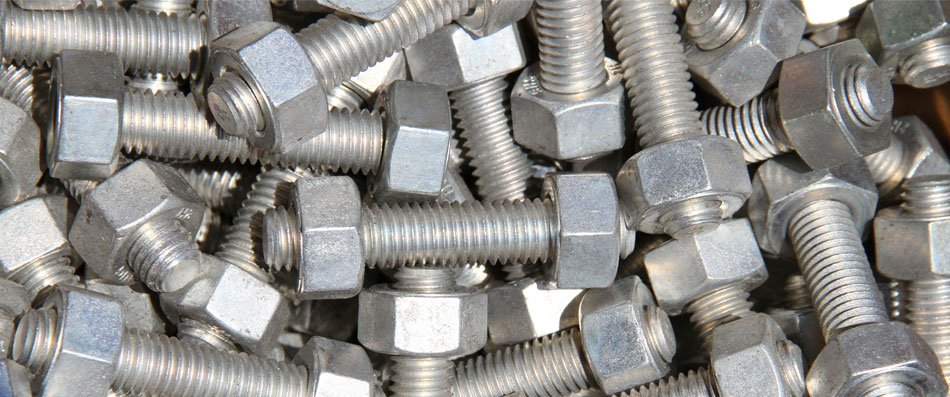

Stainless Steel 316/316L Stud Bolt
316L Stainless Steel Studs, 316L Stainless Steel Tap End Stud Bolts, SS 316 Double End Stud Bolts, Stainless Steel 316 Industrial Stud Bolts, Suppliers of SS 316L Stud Bolts, SS 316 Stud Bolts, 316 Stainless Steel Stud Bolts At Factory Price In India.
Vintex Steel & Engg. Co. is a known distributor of Stainless Steel 316 / 316L Stud Bolts, which are offered at affordable rates.
These Stainless Steel UNS S31600 Stud Bolts are crafted from enterprise compliant grades of steel, and because of our extraordinarily superior production setup, we’re imparting the high-satisfactory examined product in numerous dimensions. It do now no longer require any unique equipment or competencies to operate, and that they paintings excellently at expanded pressures and with poisonous gases. Our specialists maintain interacting with customers, which allows you to recognise their needs and necessities of stud bolts, which might be stabilized via way of means of the addition of columbium and tantalum. With wealthy enterprise revel in on this field, we’re imparting advanced high-satisfactory stud bolts, that’s fabricated the usage of excessive grade uncooked cloth making use of reducing part technology.
1.4435 Tie Rods, UNS S31603 Single End Stud Bolt, 316 SS Half Thread Stud Bolts, 1.4401 Stud Bolt, SS 316L Stud Bolts Manufacturer India, 1.4404 Stud Bolt Supplier, SS 316 Full Threaded Stud Bolt, UNS S31600 Stud Bolts, Stainless Steel 316 Threaded Rod Stockist, SS 316L Stud Bolts Manufacturer In India.
Table of Content
- Material Specification Chart Of Stainless Steel 316/316L Stud Bolt
- Stainless Steel 316/316L Stud Bolt Equivalent Grade
- Most Commonly used Stainless Steel 316/316L Stud Bolt Types
- Stainless Steel 316/316L Stud Bolt Available Standards
- Size Chart Of 316/316L Stainless Steel Stud Bolt
- Dimensions of SS 316/316L Stud Bolts
- SS 316/316L Stud Bolt Torque Chart
- Weight Chart Of SS 316/316L Stud Bolt
- Stock List Of Stainless Steel 316/316L Stud Bolt
- Chemical Composition of SS 316/316L Stud Bolt
- Mechanical Properties of Stainless Steel 316/316L Stud Bolt
- Stainless Steel 316/316L Stud Bolt Uses and Application
- Stainless Steel 316/316L Stud Bolt Export Countries
We bring on our huge commercial revel in and know-how on this commercial enterprise and are instrumental in imparting extensive collection of Stainless Steel UNS S31603 Stud Bolts, which has functions like Compact size, Fine high-satisfactory, Smooth finish, and more. The ideal state-of-artwork of those stud bolts, with required thickness guarantees easy transition and operational safety. Keeping in mind, ever-evolving necessities of our treasured clients, we’re buying and selling and providing a specific gamut of stud bolts this is used for special fastening applications. Considering our good sized revel in and understanding on this domain, we’re widely known for imparting our product variety such as stud bolts, which might be made via way of means of the usage of splendid high-satisfactory uncooked substances and state-of-artwork technology below the monitory of skilled specialists.
Available in numerous grades and specifications, these are utilized in chemical, fertilizer, oil & fueloline refineries, petrochemicals and different industries. Widely utilized in construction & different industries, 316 Stainless Steel Stud Bolts have excessive resistance in opposition to corrosion and are to be had in numerous grades to our clients. These are synthetic the usage of advanced high-satisfactory copper and uncooked substances, that’s being fabricated from the maximum relied on and dependable specialists in commercial enterprise.
Material Specification Chart Of Stainless Steel 316/316L Stud Bolt
| Specification | ASTM A193 / ASME SA 193 |
|---|---|
| Size | M02 to M33, Custom Sizes |
| Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Stud Bolts | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Stud Bolts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Stud Bolts finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Stainless Steel 316/316L Stud Bolt Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Most Commonly used Stainless Steel 316/316L Stud Bolt Types
SS 316/316L Double Ended Stud Bolt
- SS 316L Double Ended Wheel Stud
- Stainless Steel 316 Double Ended Stud Bolt
- S31603 Double Ended Stud Bolt
- 316L SS Double End Studs
- UNS S31600 Dual Threaded Stud
- 1.4404 M6 Double End Stud
- 1.4401 Double Ended Stud Bolt
SS 316/316L Tap End Stud Bolt
- S31603 Tap End Stud
- UNS S31600 Tap End Stud Bolt
- SS 316L M12 Tap End Stud Bolt
- 1.4404 Tap End Stud
- Stainless Steel 316 Tap End Stud Bolt
- 1.4401 Tap End Stud Bolt
- 316L SS Tap End Stud
SS 316/316L Single End Stud Bolt
- 1.4401 Single Ended Stud Bolt
- 316L SS Single End Studs
- Stainless Steel 316 Single Ended Stud Bolt
- 1.4404 M6 Single End Stud
- UNS S31600 Single Ended Threaded Stud
- SS 316L Single Ended Stud
- S31603 Single Ended Stud Bolt
SS 316/316L Threaded Rod
- S31603 Fully Threaded Rod
- 1.4404 M5 Threaded Rod
- SS 316 Threaded Rod
- 316L SS Threaded Studs
- Stainless Steel 316 Threaded Rod
- UNS S31600 Threaded Stud
- 1.4401 Threaded Ends
SS 316/316L Tie Rod
- UNS S31600 Inner Tie Rod
- S31603 Inner & Outer Tie Rod
- SS 316L Tie Rod
- Stainless Steel 316 Tie Rod
- 1.4401 Upper Tie Rod
- 1.4404 Front Inner Tie Rods
- 316L SS Tie Rod End
SS 316/316L Flush Head Stud
- 316L SS Self Clinch Flush Head Stud
- UNS S31600 Flush Head Studs
- 1.4404 Flush Head Self Clinching Studs
- Stainless Steel 316 Flush Head Stud
- S31603 Flush Head Clinch Studs
- 1.4401 Flush Head Studs
- SS 316 Self Clinching Stud
SS 316/316L Stud
- 316L SS Weld Studs
- S31603 Dowel Studs
- Stainless Steel 316 Stud
- SS 316L Studs
- UNS S31600 Clinch Stud
- 1.4401 Studs
- 1.4404 Studs
SS 316/316L Stud Bolt
- 316L SS Fully Threaded Stud Bolts
- S31603 Stud Bolts
- UNS S31600 Half Thread Stud Bolt
- SS 316 Stud Bolts
- 1.4401 Stud Bolt
- 1.4404 Stud Bolt
- Stainless Steel 316 Stud Bolt
Stainless Steel 316/316L Stud Bolt Available Standards
| ASTM | ASTM A193 Stud Bolt | ASTM A307 Stud Bolt | ASTM A320 Stud Bolt |
| ASTM A325 Stud Bolt | ASTM A354 Stud Bolt | ASTM A449 Stud Bolt | |
| ASTM A490 Stud Bolt | ASTM F568 Stud Bolt | ASTM F593 Stud Bolt | |
| ASTM F1554 Stud Bolt | ASTM A325M Stud Bolt | ASTM A490M Stud Bolt | |
| IS | IS 1363 Stud Bolt | IS 1364 Stud Bolt | IS 2585 Stud Bolt |
| IS 3138 Stud Bolt | IS 3640 Stud Bolt | IS 10238 Stud Bolt | |
| IS 3757 Stud Bolt | IS 6639 Stud Bolt | ||
| DIN | DIN 931 Stud Bolt | DIN 933 Stud Bolt | DIN 938 Stud Bolt |
| DIN 939 Stud Bolt | DIN 960 Stud Bolt | DIN 961 Stud Bolt | |
| DIN 975 Stud Bolt | DIN 2510 Stud Bolt | DIN 7990 Stud Bolt | |
| DIN 610 Stud Bolt | DIN 6914 Stud Bolt | DIN 6915 Stud Bolt | |
| BS | BS 1083 Stud Bolt | BS 1768 Stud Bolt | BS 1769 Stud Bolt |
| ANSI / ASME | ASME B18.2.1 Stud Bolt | ASME B18.31.3 Stud Bolt | ASME B16.5 Stud Bolt |
| ANSI B18.2.1 Stud Bolt | ANSI / ASME B18.1.1 Stud Bolt | ||
| ISO | ISO 7412 Stud Bolt |
ANSI And/Or ASME Standards Stud Bolt (Inch Series)
| Description | Standard | Measurement System |
|---|---|---|
| Continuous Thread Stud Bolts | ANSI/ASME B18.31.2 | Inch Series |
| Stud Bolts with Chamfered End for Flange Bolting | ANSI/ASME B16.5 | Inch Series |
| Welding Studs / Weld Studs | DIN 525 | Metric |
| Double End Stud Bolts / Double Ended Studs | DIN 835 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 1 x Diameter | DIN 938 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 1.25 x Diameter | DIN 939 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 2.5 x Diameter | DIN 940 | Metric |
| Double End Studs With Thread Engagement Length Equals to 2D | DIN 949-1 | Metric |
| Double End Studs With Thread Engagement Length Equals to 2.5D | DIN 949-2 | Metric |
| Plain End Stud Bolts / Threaded Rods | DIN 975 | Inch Series |
| Plain End Stud Bolts / Threaded Rods | DIN 976 | Metric |
| Double End Studs / Stud Bolts | DIN 2509 | Metric |
| Double End Stud Bolts With Reduced Shank | DIN 2510 L, DIN 2510 Z, DIN 2510 K, DIN 2510 ZU/KU, DIN 2510 GP, DIN 2510 GQ, DIN 2510 GR, DIN 2510 GS, DIN 2510 HP | Metric |
| Studs / Stud Bolts | BS 2693 | Inch Series |
| Stud Bolts | BS 3692 | Metric |
| Double End Stud Bolts With Thread Engagement Length Equals to 1.5 x Diameter | BS 4439 | Metric |
| Stud Bolts | IS 1862 | Metric |
| Clamping Studs | IS 13178 | Metric |
We are One Of The Most Trusted Supplier Of 316/316L Stainless Steel Stud Bolt in India. For final SS 316L Stud Bolts Price List. Please Call on +91 22 6636 2645 or drop an E-Mail : sales@vintexsteel.com
Other Related Products
Size Chart Of 316/316L Stainless Steel Stud Bolt
| Class 150 Flanges ASME B16.5 (Stud bolt sizes) | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 1/2 | 2 3/8 | 5/8 | 4 | 1/2 | 2 1/4 | – | |
| 3/4 | 3 7/8 | 2 3/4 | 5/8 | 4 | 1/2 | 2 1/2 | – | |
| 1 | 4 1/4 | 3 1/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 1 1/4 | 4 5/8 | 3 1/2 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 1 1/2 | 5 | 3 7/8 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 2 | 6 | 4 3/4 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 2 1/2 | 7 | 5 1/2 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 | 7 1/2 | 6 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 1/2 | 8 1/2 | 7 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 4 | 9 | 7 1/2 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 5 | 10 | 8 1/2 | 7/8 | 8 | 3/4 | 3 3/4 | 4 1/4 | |
| 6 | 11 | 9 1/2 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 8 | 13 1/2 | 11 3/4 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 10 | 16 | 14 3/4 | 1 | 12 | 7/8 | 4 1/2 | 5 | |
| 12 | 19 | 17 | 1 | 12 | 7/8 | 4 3/4 | 5 1/4 | |
| 14 | 21 | 18 3/4 | 1 1/8 | 12 | 1 | 5 1/4 | 5 3/4 | |
| 16 | 23 1/2 | 21 1/4 | 1 1/8 | 16 | 1 | 5 1/4 | 5 3/4 | |
| 18 | 25 | 22 3/4 | 1 1/4 | 16 | 1 1/8 | 5 3/4 | 6 1/4 | |
| 20 | 27 1/2 | 25 | 1 1/4 | 20 | 1 1/8 | 6 1/4 | 6 3/4 | |
| 24 | 32 | 29 1/2 | 1 1/4 | 20 | 1 1/4 | 6 3/4 | 7 1/4 | |
| Class 300 Flanges ASME B16.5 | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 3/4 | 2 5/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 3/4 | 4 5/8 | 3 1/4 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 | 4 7/8 | 3 1/2 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 1/4 | 5 1/4 | 3 7/8 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 1 1/2 | 6 1/8 | 4 1/2 | 7/8 | 4 | 3/4 | 3 1/2 | 4 | |
| 2 | 6 1/2 | 5 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 2 1/2 | 7 1/2 | 5 7/8 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 3 | 8 1/4 | 6 5/8 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 3 1/2 | 9 | 7 1/4 | 7/8 | 8 | 3/4 | 4 1/4 | 5 | |
| 4 | 10 | 7 7/8 | 7/8 | 8 | 3/4 | 4 1/2 | 5 | |
| 5 | 11 | 9 1/4 | 7/8 | 8 | 3/4 | 4 3/4 | 5 1/4 | |
| 6 | 12 1/2 | 10 5/8 | 7/8 | 12 | 3/4 | 4 3/4 | 5 1/2 | |
| 8 | 15 | 13 | 1 | 12 | 7/8 | 5 1/2 | 6 | |
| 10 | 17 1/2 | 15 1/4 | 1 1/8 | 16 | 1 | 6 1/4 | 6 3/4 | |
| 12 | 20 1/2 | 17 3/4 | 1 1/4 | 16 | 1 1/8 | 6 3/4 | 7 1/4 | |
| 14 | 23 | 20 1/4 | 1 1/4 | 20 | 1 1/8 | 7 | 7 1/2 | |
| 16 | 25 1/2 | 22 1/2 | 1 3/8 | 20 | 1 1/4 | 7 1/2 | 8 | |
| 18 | 28 | 24 3/4 | 1 3/8 | 24 | 1 1/4 | 7 3/4 | 8 1/4 | |
| 20 | 30 1/2 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 8 3/4 | |
| 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 10 | |
Dimensions of SS 316/316L Stud Bolts
| Diameter | Diameter in mm | Diameter in inch | Nut Sizes |
|---|---|---|---|
| M12 | 12 | 0.4724 | 19 |
| M10 | 10 | 0.3937 | 17 |
| M14 | 14 | 0.5512 | 22 |
| M18 | 18 | 0.7087 | 27 |
| M16 | 16 | 0.6299 | 24 |
| M20 | 20 | 0.7874 | 30 |
| M24 | 24 | 0.9449 | 36 |
| M22 | 22 | 0.8661 | 32 |
| M27 | 27 | 1.063 | 41 |
| M33 | 33 | 1.2992 | 50 |
| M30 | 30 | 1.1811 | 46 |
| M36 | 36 | 1.4173 | 55 |
| M42 | 42 | 1.6535 | 65 |
| M39 | 39 | 1.5354 | 60 |
| M45 | 45 | 1.7717 | 70 |
| M52 | 52 | 2.0472 | 80 |
| M48 | 48 | 1.8898 | 75 |
| M56 | 56 | 2.2047 | 85 |
| M64 | 64 | 2.5197 | 95 |
| M60 | 60 | 2.3622 | 90 |
| M68 | 68 | 2.6772 | 100 |
| M76 | 76 | 2.9921 | 110 |
| M72 | 72 | 2.8346 | 105 |
| M80 | 80 | 3.1496 | 115 |
| M90 | 90 | 3.5433 | 130 |
| M85 | 85 | 3.3464 | 120 |
| M100 | 100 | 3.937 | 145 |
| M160 | 160 | 6.2992 | 230 |
| M125 | 125 | 4.9212 | 180 |
| M110 | 110 | 4.3307 | 155 |
| M140 | 140 | 5.5118 | 200 |
SS 316/316L Stud Bolt Torque Chart
| Flange Size | B16.5 Class 150 RF/ Ring Gaskets | B16.5 Class 150 FF/ Full Face Gaskets | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | |||||||
| 1st | 2nd | Final | Dwg/No. | Bolt Size | 1st | 2nd | Final | Dwg*/No. | Bolt Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 3/4″ | 13 | 27 | 40 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1″ | 15 | 30 | 50 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/4″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 2-1/2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3-1/2″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 4″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 8″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 10″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 12″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 14″ | 147 | 294 | 490 | 12-bolt | 1″ | 147 | 294 | 490 | 12-bolt | 1″ |
| 16″ | 147 | 294 | 490 | 16-bolt | 1″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 18″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 20″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ |
| 24″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ |
| Flange Size | B16.5 Class 300 RF/ Ring Gaskets | ||||
|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence* | ||||
| 1st | 2nd | Final | Dwg/No. | Stud Bolts Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ |
| 3/4″ | 15 | 30 | 50 | 4-bolt | 5/8″ |
| 1″ | 21 | 42 | 70 | 4-bolt | 5/8″ |
| 1-1/4″ | 30 | 60 | 100 | 4-bolt | 5/8″ |
| 1-1/2″ | 45 | 90 | 150 | 4-bolt | 3/4″ |
| 2″ | 33 | 66 | 110 | 8-bolt | 5/8″ |
| 2-1/2″ | 42 | 84 | 140 | 8-bolt | 3/4″ |
| 3″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 3-1/2″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 12-bolt | 3/4″ |
| 8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 10″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 12″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 14″ | 195 | 390 | 650 | 20-bolt | 1-1/8″ |
| 16″ | 273 | 546 | 910 | 20-bolt | 1-1/4″ |
| 18″ | 300 | 600 | 1,000 | 24-bolt | 1-1/4″ |
| 20″ | 300 | 600 | 1,000 | 24-bolt | 1-1/4″ |
| 24″ | 465 | 930 | 1,550 | 24-bolt | 1-1/2″ |
Weight Chart Of SS 316/316L Stud Bolts
| Weight Imperial | |||||||||||||
| STUD BOLT LENGTH (in inches) | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1.3/8 | 1 1/2 | 1.5/8 | 1.3/4 | 1 7/8 | |
| 2.1/2 | 10.8 | ||||||||||||
| 2.3/4 | 11.6 | 19.8 | |||||||||||
| 3.1/4 | 12.4 | 21 | 32.4 | ||||||||||
| 3.1/2 | 13.2 | 22.2 | 34.3 | 50 | |||||||||
| 4 | 14 | 23.4 | 36.2 | 52.6 | 71.8 | ||||||||
| 4.1/2 | 14.8 | 24.6 | 38.1 | 55.2 | 75.2 | 102 | |||||||
| 4.3/4 | 15.6 | 25.8 | 40 | 57.8 | 78.6 | 106 | 137 | ||||||
| 5 | 16.4 | 27 | 41.9 | 60.4 | 82 | 111 | 142 | 179 | |||||
| 5.1/2 | 17.2 | 28.2 | 43.8 | 63 | 85.4 | 115 | 147 | 186 | 234 | ||||
| 6 | 18 | 29.4 | 45.7 | 65.6 | 88.8 | 119 | 153 | 193 | 242 | 289 | |||
| 6.1/4 | 18.8 | 30.6 | 47.6 | 68.2 | 92.2 | 123 | 158 | 200 | 250 | 298 | 263 | ||
| 6.1/2 | 19.6 | 32.3 | 49.5 | 70.8 | 95.6 | 128 | 164 | 206 | 258 | 308 | 374 | 437 | |
| 7 | 20.4 | 33.5 | 50.8 | 73.4 | 99 | 132 | 169 | 213 | 266 | 317 | 385 | 449 | |
| 7.1/2 | 21.2 | 34.8 | 52.7 | 75.5 | 103 | 136 | 174 | 220 | 275 | 326 | 396 | 462 | |
| 8 | 22 | 36.1 | 54.5 | 78 | 106 | 141 | 180 | 226 | 283 | 336 | 407 | 475 | |
| 8.1/4 | 37.3 | 56.3 | 80.5 | 108 | 145 | 185 | 233 | 291 | 345 | 418 | 488 | ||
| 8.3/4 | 38.6 | 58.1 | 83.1 | 112 | 149 | 191 | 240 | 299 | 354 | 429 | 500 | ||
| 9 | 39.8 | 60 | 85.6 | 115 | 153 | 196 | 246 | 307 | 364 | 440 | 513 | ||
| 9.1/2 | 41.1 | 61.8 | 88.2 | 118 | 158 | 201 | 253 | 316 | 373 | 451 | 526 | ||
| 10 | 63.7 | 90.7 | 122 | 162 | 206 | 260 | 324 | 382 | 463 | 538 | |||
| 10/1.4 | 93.3 | 125 | 166 | 212 | 267 | 332 | 391 | 474 | 551 | ||||
| 1.0.1/2 | 128 | 171 | 217 | 273 | 340 | 401 | 485 | 564 | |||||
| 11 | 132 | 175 | 223 | 279 | 345 | 410 | 496 | 576 | |||||
| 11.1/2 | 135 | 179 | 228 | 285 | 350 | 419 | 507 | 589 | |||||
| 12 | 138 | 184 | 233 | 292 | 358 | 429 | 518 | 602 | |||||
| Weight Of Metric Studs Bolt | |||||||||||||
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
| 60 | 5,6 | 8,1 | 12 | 15,6 | |||||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | 23,7 | ||||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 25,4 | 32,5 | |||||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 27,1 | 34,5 | 45,5 | ||||||
| 100 | 7,6 | 11 | 16 | 21 | 28,8 | 36,7 | 47,2 | 54,2 | |||||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 30,4 | 38,7 | 48,3 | 58,2 | 80 | ||||
| 120 | 8,6 | 12,4 | 18 | 23,6 | 32,1 | 40,7 | 50,9 | 60,2 | 84,7 | 107 | |||
| 130 | 9,1 | 13,2 | 19 | 24,9 | 33,7 | 42,8 | 53,4 | 63,2 | 88,6 | 111 | 141 | ||
| 140 | 9,6 | 14,2 | 20 | 26,2 | 35,4 | 44,9 | 55,9 | 66,2 | 92,4 | 116 | 147 | 185 | |
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 36,9 | 46,9 | 58,5 | 69,2 | 96,3 | 121 | 153 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 38,6 | 49 | 61 | 72,2 | 100,1 | 126 | 159 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 40,2 | 51,1 | 63,5 | 75,2 | 104 | 130 | 165 | 206 | 253 | |
| 180 | 23,8 | 31,8 | 41,9 | 52,3 | 66,1 | 78,1 | 108 | 135 | 171 | 213 | 261 | ||
| 190 | 33,1 | 43,5 | 54,4 | 68,4 | 81,1 | 112 | 140 | 176 | 219 | 269 | |||
| 200 | 34,5 | 45,2 | 56,2 | 71 | 84 | 116 | 144 | 182 | 226 | 278 | |||
| 210 | 35,8 | 46,8 | 58,5 | 73,5 | 88,4 | 120 | 149 | 188 | 233 | 286 | |||
| 220 | 37,1 | 48,4 | 60,6 | 76,1 | 91,4 | 124 | 154 | 194 | 240 | 294 | |||
| 230 | 38,5 | 50,1 | 62,6 | 78,6 | 94,4 | 127 | 159 | 201 | 247 | 302 | |||
| 240 | 39,8 | 51,7 | 64,7 | 81,2 | 97,4 | 130,9 | 164 | 208 | 253 | 310 | |||
| 250 | 41,1 | 53,4 | 66,8 | 83,7 | 100,4 | 134,8 | 172 | 214 | 260 | 319 | |||
| 260 | 55 | 68,8 | 86,3 | 103,4 | 138,6 | 177 | 220 | 267 | 327 | ||||
| 270 | 56,6 | 70,9 | 88,8 | 106,4 | 142,5 | 182 | 224 | 274 | 335 | ||||
| 280 | 58,3 | 73 | 91,4 | 109,4 | 146,3 | 187 | 230 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 150,1 | 192 | 236 | 291 | 360 | |||||
| 300 | 77,1 | 96,5 | 115,4 | 154 | 196 | 241 | 298 | 368 | |||||
| 320 | 101,6 | 121,3 | 161,7 | 206 | 253 | 312 | 380 | ||||||
| 340 | 127,3 | 169,4 | 215 | 265 | 326 | 395 | |||||||
| 360 | 133,3 | 177,1 | 224 | 276 | 340 | 411 | |||||||
| 380 | 184,8 | 234 | 288 | 353 | 428 | ||||||||
| 400 | 192,5 | 243 | 299 | 367 | 444 | ||||||||
| 420 | 252 | 311 | 381 | 460 | |||||||||
| 440 | 262 | 322 | 394 | 477 | |||||||||
| 460 | 271 | 334 | 408 | 493 | |||||||||
| 480 | 281 | 345 | 422 | 509 | |||||||||
| 500 | 290 | 357 | 436 | 526 | |||||||||
Test Certificates Of Stainless Steel 316/316L Stud Bolt
- Mill Test Report
- Raw Materials Certificate
- EN 10204/3.1B
- Third Party Inspection Report
- 100% Radiography Test Report
Stock List Of Stainless Steel 316/316L Stud Bolt
- ASME SA193 316L SS Full Threaded Stud Bolt
- ASTM A193 SS 316 Flush Head Studs
- Stainless Steel 316 Double Ended Stud
- 316 Stainless Steel Threaded Rod
- 316L Stainless Steel Single End Stud Bolt
- DIN 1.4404 Weld Studs
- ASME SA193 316 Stainless Steel Threaded Stud Bolts
- Stainless Steel SUS 316L Heavy Stud Bolt
- SS 316 Tap End Stud Bolts Supplier
- 316 Stainless Steel Half Thread Stud Bolt
- 316 SS Continuous Thread Stud Bolt Exporter
- Stainless Steel 316L Stud Bolts
- Stainless Steel 316 Continuous Thread Stud Bolt
- UNS S31603 Metric Thread Stud Bolt
- Stainless Steel 316 Studs
- SS 316L Double End Stud Bolts Stockist
- Stainless Steel ASTM A193 316 Tie Rods
- 316L Stainless Steel M16 Stud Bolt
- Stainless Steel 316 Industrial Stud Bolts Price
- ASTM A193 316 Stainless Steel Threaded Studs
- UNS S31600 Studs
- Grade 316L SS Stud Bolts Manufacturer
- Stainless Steel 316 Partial Threaded Stud Bolt
- Stainless Steel 316 Tie Bars
- AISI 316L Wheel Lug Stud Bolt
- 1.4435 Threaded Rod
- Stainless Steel 316 Heavy Stud Bolt Distributor
- 316L Stainless Steel Studs
- UNS S31603 Stud Bolt
- 316 Stainless Steel Stud Bolts With Reduced Shank
- Stainless Steel 316 Drywall Stud
- DIN 1.4401 Continuous Thread Stud Bolt
- 316 Stainless Steel High Pressure Stud Bolt
- 316 SS Stud Bolt Dealer
Chemical Composition of SS 316/316L Stud Bolt
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
Mechanical Properties of Stainless Steel 316/316L Stud Bolt
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 316/316L Stud Bolt Uses and Application
- Nuclear Energy Sector
- Offshore & Chemical Industry
- Engineering & Aerospace Industry
- Automotive industry
- Oil & Gas Industries
- Power Generation
- Architectural Trim and Molding
- Kitchen Benches, Sinks, Equipment
- Food Processing Equipment
Previous
Next
Stainless Steel 316/316L Stud Bolt Export Countries
Denmark, Hong Kong, Taiwan, Philippines, Belarus, Nigeria, Hungary, Austria, United Arab Emirates, Greece, Kazakhstan, New Zealand, Estonia, Egypt, Japan, Bahrain, Bhutan, Croatia, Israel, Ecuador, Ukraine, Slovakia, Iran, Czech Republic, Venezuela, Ghana, Trinidad & Tobago,Tunisia, Malaysia, Australia, Colombia, Bolivia, Algeria, Kuwait, France, Poland, United States, Thailand, Russia, Bangladesh, Pakistan, Libya, Afghanistan, Saudi Arabia, Canada, Switzerland, Argentina, Lebanon, Belgium, Poland, Netherlands, Chile, Sri Lanka, Morocco, South Korea, Serbia, Nigeria, Jordan, Brazil, Peru, Chile, Lithuania, Norway, Bulgaria, Azerbaijan, Indonesia, Spain, Portugal, United Kingdom, Mexico, Vietnam, Iran, Singapore, Kenya, Finland, Qatar, South Africa, Mongolia, Oman, Turkey, Gabon, Iraq, China, Mexico, Sweden, India, Costa Rica, Italy, Yemen, Romania, Angola.
SS Fasteners
Fasteners
Product Categories
Have Any Questions ?
Please feel free to contact us. We will get back to you with 2 business days. Or just call us now.
Buy Stainless Steel 316 Stud Bolt and SS 316 Studs, 316L SS Stud Bolt At Factory Price In India
