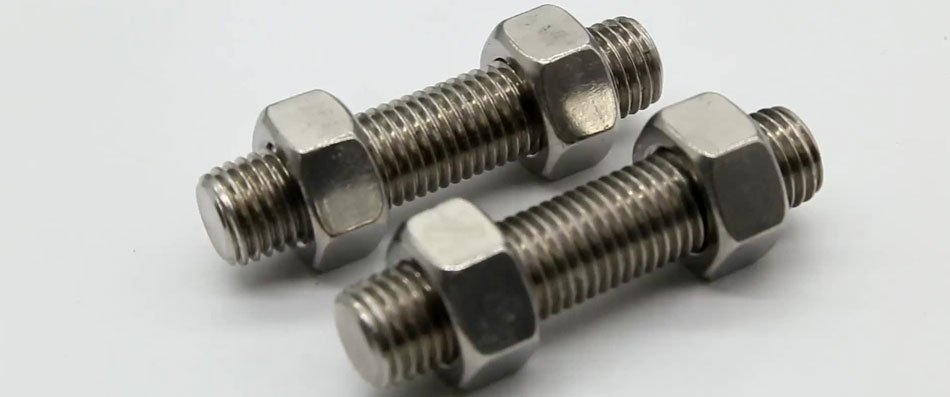

Stainless Steel 317/317L Stud Bolt
317L Stainless Steel Studs, Suppliers of SS 317L Stud Bolts, Stainless Steel 317 Industrial Stud Bolts, 317L Stainless Steel Tap End Stud Bolts, SS 317 Stud Bolts, SS 317 Double End Stud Bolts, 317 Stainless Steel Stud Bolts At Factory Price In India.
Vintex Steel & Engg. Co. is one of the known trader of Stainless Steel 317 / 317L Stud Bolts, which is a non – stabilised low carbon excessive alloy austenitic material.
The addition of copper to those offers it significantly progressed resistance to sturdy decreasing acids, specifically sulphuric acid. It is likewise notably proof against chloride attack – pitting / crevice corrosion and pressure corrosion cracking. Stainless Steel UNS S31700 Stud Bolts is non – magnetic in all situations and has incredible weldability and formability. The austenitic shape of stud bolts additionally offers this grade incredible toughness, even right all the way down to cryogenic temperatures. It does have very huge contents of the excessive fee substances nickel and molybdenum.
UNS S31700 Stud Bolts, SS 317L Stud Bolts Manufacturer, UNS S31703 Full Threaded Stud Bolt, Stainless Steel 317 Threaded Rod Stockist, 1.4438 Stud Bolt Supplier, 1.4449 Stud Bolt, 317L SS Single End Stud Bolt, 317 SS Half Thread Stud Bolts, SS 317 Tie Rods, SS 317L Stud Bolts Manufacturer In India.
Table of Content
- Material Specification Chart Of Stainless Steel 317/317L Stud Bolt
- Stainless Steel 317/317L Stud Bolt Equivalent Grade
- Most Commonly used Stainless Steel 317/317L Stud Bolt Types
- Stainless Steel 317/317L Stud Bolt Available Standards
- Size Chart Of 317/317L Stainless Steel Stud Bolt
- Dimensions of SS 317/317L Stud Bolts
- SS 317/317L Stud Bolt Torque Chart
- Weight Chart Of SS 317/317L Stud Bolt
- Stock List Of Stainless Steel 317/317L Stud Bolt
- Chemical Composition of SS 317/317L Stud Bolt
- Mechanical Properties of Stainless Steel 317/317L Stud Bolt
- Stainless Steel 317/317L Stud Bolt Uses and Application
- Stainless Steel 317/317L Stud Bolt Export Countries
Many of the packages wherein this grade has formerly executed properly can now be fulfilled at decrease fee by stud bolts, so it’s far used much less generally than within the past. Similar however now no longer always same homes of stud bolts are special for different merchandise of their respective specifications. Moreover, the addition of Stainless Steel UNS S31703 Stud Bolts to these grades develops resistance to sulphuric acid and different decreasing marketers in each competitive and slight situation. It additionally gives true oxidation resistance. However, the structural balance of stud bolts collapses at excessive temperatures, specifically above four hundred Degree C.
It is made from many uncooked materials, together with iron, nickel, chromium, and molybdenum, that are in excessive demand. It is recyclable, and not using a degradation, in which the system for recycling stainless-steel is same to the system for generating stainless-steel. All of those elements integrate to make it very fee powerful to recycle Stainless Steel WNR 1.4438 Stud Bolts, and feature consequently, brought about extraordinarily excessive recapture costs. It is utilized in architecture, constructing and production packages round the arena is recaptured and recycled on the cease of service. Thus, regardless of the excessive recapture costs for stud bolts, there’s simply now no longer sufficient cease of lifestyles within the cutting-edge pipeline to maintain up with today’s manufacturing demands.
Material Specification Chart Of Stainless Steel 317/317L Stud Bolt
| Specification | ASTM A193 / ASME SA 193 |
|---|---|
| Size | M02 to M33, Custom Sizes |
| Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Stud Bolts | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Stud Bolts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Stud Bolts finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Stainless Steel 317/317L Stud Bolt Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Most Commonly used Stainless Steel 317/317L Stud Bolt Types
SS 317/317L Double Ended Stud Bolt
- UNS S31700 Dual Threaded Stud
- 1.4449 Double Ended Stud Bolt
- 1.4438 M6 Double End Stud
- Stainless Steel 317 Double Ended Stud Bolt
- 317L SS Double End Studs
- S31703 Double Ended Stud Bolt
- SS 317L Double Ended Wheel Stud
SS 317/317L Tap End Stud Bolt
- 1.4438 Tap End Stud
- UNS S31700 Tap End Stud Bolt
- Stainless Steel 317 Tap End Stud Bolt
- 1.4449 Tap End Stud Bolt
- SS 317L M12 Tap End Stud Bolt
- 317L SS Tap End Stud
- S31703 Tap End Stud
SS 317/317L Single End Stud Bolt
- SS 317L Single Ended Stud
- Stainless Steel 317 Single Ended Stud Bolt
- 1.4438 M6 Single End Stud
- 1.4449 Single Ended Stud Bolt
- 317L SS Single End Studs
- UNS S31700 Single Ended Threaded Stud
- S31703 Single Ended Stud Bolt
SS 317/317L Threaded Rod
- Stainless Steel 317 Threaded Rod
- 317L SS Threaded Studs
- SS 317 Threaded Rod
- UNS S31700 Threaded Stud
- S31703 Fully Threaded Rod
- 1.4438 M5 Threaded Rod
- 1.4449 Threaded Ends
SS 317/317L Tie Rod
- 1.4449 Upper Tie Rod
- 317L SS Tie Rod End
- 1.4438 Front Inner Tie Rods
- Stainless Steel 317 Tie Rod
- SS 317L Tie Rod
- S31703 Inner & Outer Tie Rod
- UNS S31700 Inner Tie Rod
SS 317/317L Flush Head Stud
- Stainless Steel 317 Flush Head Stud
- 1.4438 Flush Head Self Clinching Studs
- UNS S31700 Flush Head Studs
- S31703 Flush Head Clinch Studs
- 1.4449 Flush Head Studs
- 317L SS Self Clinch Flush Head Stud
- SS 317 Self Clinching Stud
SS 317/317L Stud
- 317L SS Weld Studs
- S31703 Dowel Studs
- Stainless Steel 317 Stud
- 1.4449 Studs
- 1.4438 Studs
- UNS S31700 Clinch Stud
- SS 317L Studs
SS 317/317L Stud Bolt
- 317L SS Fully Threaded Stud Bolts
- 1.4438 Stud Bolt
- 1.4449 Stud Bolt
- Stainless Steel 317 Stud Bolt
- SS 317 Stud Bolts
- S31703 Stud Bolts
- UNS S31700 Half Thread Stud Bolt
Stainless Steel 317/317L Stud Bolt Available Standards
| ASTM | ASTM A193 Stud Bolt | ASTM A307 Stud Bolt | ASTM A320 Stud Bolt |
| ASTM A325 Stud Bolt | ASTM A354 Stud Bolt | ASTM A449 Stud Bolt | |
| ASTM A490 Stud Bolt | ASTM F568 Stud Bolt | ASTM F593 Stud Bolt | |
| ASTM F1554 Stud Bolt | ASTM A325M Stud Bolt | ASTM A490M Stud Bolt | |
| IS | IS 1363 Stud Bolt | IS 1364 Stud Bolt | IS 2585 Stud Bolt |
| IS 3138 Stud Bolt | IS 3640 Stud Bolt | IS 10238 Stud Bolt | |
| IS 3757 Stud Bolt | IS 6639 Stud Bolt | ||
| DIN | DIN 931 Stud Bolt | DIN 933 Stud Bolt | DIN 938 Stud Bolt |
| DIN 939 Stud Bolt | DIN 960 Stud Bolt | DIN 961 Stud Bolt | |
| DIN 975 Stud Bolt | DIN 2510 Stud Bolt | DIN 7990 Stud Bolt | |
| DIN 610 Stud Bolt | DIN 6914 Stud Bolt | DIN 6915 Stud Bolt | |
| BS | BS 1083 Stud Bolt | BS 1768 Stud Bolt | BS 1769 Stud Bolt |
| ANSI / ASME | ASME B18.2.1 Stud Bolt | ASME B18.31.3 Stud Bolt | ASME B16.5 Stud Bolt |
| ANSI B18.2.1 Stud Bolt | ANSI / ASME B18.1.1 Stud Bolt | ||
| ISO | ISO 7412 Stud Bolt |
ANSI And/Or ASME Standards Stud Bolt (Inch Series)
| Description | Standard | Measurement System |
|---|---|---|
| Continuous Thread Stud Bolts | ANSI/ASME B18.31.2 | Inch Series |
| Stud Bolts with Chamfered End for Flange Bolting | ANSI/ASME B16.5 | Inch Series |
| Welding Studs / Weld Studs | DIN 525 | Metric |
| Double End Stud Bolts / Double Ended Studs | DIN 835 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 1 x Diameter | DIN 938 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 1.25 x Diameter | DIN 939 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 2.5 x Diameter | DIN 940 | Metric |
| Double End Studs With Thread Engagement Length Equals to 2D | DIN 949-1 | Metric |
| Double End Studs With Thread Engagement Length Equals to 2.5D | DIN 949-2 | Metric |
| Plain End Stud Bolts / Threaded Rods | DIN 975 | Inch Series |
| Plain End Stud Bolts / Threaded Rods | DIN 976 | Metric |
| Double End Studs / Stud Bolts | DIN 2509 | Metric |
| Double End Stud Bolts With Reduced Shank | DIN 2510 L, DIN 2510 Z, DIN 2510 K, DIN 2510 ZU/KU, DIN 2510 GP, DIN 2510 GQ, DIN 2510 GR, DIN 2510 GS, DIN 2510 HP | Metric |
| Studs / Stud Bolts | BS 2693 | Inch Series |
| Stud Bolts | BS 3692 | Metric |
| Double End Stud Bolts With Thread Engagement Length Equals to 1.5 x Diameter | BS 4439 | Metric |
| Stud Bolts | IS 1862 | Metric |
| Clamping Studs | IS 13178 | Metric |
We are One Of The Most Trusted Supplier Of 317/317L Stainless Steel Stud Bolt in India. For final SS 317L Stud Bolts Price List. Please Call on +91 22 6636 2645 or drop an E-Mail : sales@vintexsteel.com
Other Related Products
Size Chart Of 317/317L Stainless Steel Stud Bolt
| Class 150 Flanges ASME B16.5 (Stud bolt sizes) | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 1/2 | 2 3/8 | 5/8 | 4 | 1/2 | 2 1/4 | – | |
| 3/4 | 3 7/8 | 2 3/4 | 5/8 | 4 | 1/2 | 2 1/2 | – | |
| 1 | 4 1/4 | 3 1/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 1 1/4 | 4 5/8 | 3 1/2 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 1 1/2 | 5 | 3 7/8 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 2 | 6 | 4 3/4 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 2 1/2 | 7 | 5 1/2 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 | 7 1/2 | 6 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 1/2 | 8 1/2 | 7 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 4 | 9 | 7 1/2 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 5 | 10 | 8 1/2 | 7/8 | 8 | 3/4 | 3 3/4 | 4 1/4 | |
| 6 | 11 | 9 1/2 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 8 | 13 1/2 | 11 3/4 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 10 | 16 | 14 3/4 | 1 | 12 | 7/8 | 4 1/2 | 5 | |
| 12 | 19 | 17 | 1 | 12 | 7/8 | 4 3/4 | 5 1/4 | |
| 14 | 21 | 18 3/4 | 1 1/8 | 12 | 1 | 5 1/4 | 5 3/4 | |
| 16 | 23 1/2 | 21 1/4 | 1 1/8 | 16 | 1 | 5 1/4 | 5 3/4 | |
| 18 | 25 | 22 3/4 | 1 1/4 | 16 | 1 1/8 | 5 3/4 | 6 1/4 | |
| 20 | 27 1/2 | 25 | 1 1/4 | 20 | 1 1/8 | 6 1/4 | 6 3/4 | |
| 24 | 32 | 29 1/2 | 1 1/4 | 20 | 1 1/4 | 6 3/4 | 7 1/4 | |
| Class 300 Flanges ASME B16.5 | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 3/4 | 2 5/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 3/4 | 4 5/8 | 3 1/4 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 | 4 7/8 | 3 1/2 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 1/4 | 5 1/4 | 3 7/8 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 1 1/2 | 6 1/8 | 4 1/2 | 7/8 | 4 | 3/4 | 3 1/2 | 4 | |
| 2 | 6 1/2 | 5 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 2 1/2 | 7 1/2 | 5 7/8 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 3 | 8 1/4 | 6 5/8 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 3 1/2 | 9 | 7 1/4 | 7/8 | 8 | 3/4 | 4 1/4 | 5 | |
| 4 | 10 | 7 7/8 | 7/8 | 8 | 3/4 | 4 1/2 | 5 | |
| 5 | 11 | 9 1/4 | 7/8 | 8 | 3/4 | 4 3/4 | 5 1/4 | |
| 6 | 12 1/2 | 10 5/8 | 7/8 | 12 | 3/4 | 4 3/4 | 5 1/2 | |
| 8 | 15 | 13 | 1 | 12 | 7/8 | 5 1/2 | 6 | |
| 10 | 17 1/2 | 15 1/4 | 1 1/8 | 16 | 1 | 6 1/4 | 6 3/4 | |
| 12 | 20 1/2 | 17 3/4 | 1 1/4 | 16 | 1 1/8 | 6 3/4 | 7 1/4 | |
| 14 | 23 | 20 1/4 | 1 1/4 | 20 | 1 1/8 | 7 | 7 1/2 | |
| 16 | 25 1/2 | 22 1/2 | 1 3/8 | 20 | 1 1/4 | 7 1/2 | 8 | |
| 18 | 28 | 24 3/4 | 1 3/8 | 24 | 1 1/4 | 7 3/4 | 8 1/4 | |
| 20 | 30 1/2 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 8 3/4 | |
| 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 10 | |
Dimensions of SS 317/317L Stud Bolts
| Diameter | Diameter in mm | Diameter in inch | Nut Sizes |
|---|---|---|---|
| M12 | 12 | 0.4724 | 19 |
| M10 | 10 | 0.3937 | 17 |
| M14 | 14 | 0.5512 | 22 |
| M18 | 18 | 0.7087 | 27 |
| M16 | 16 | 0.6299 | 24 |
| M20 | 20 | 0.7874 | 30 |
| M24 | 24 | 0.9449 | 36 |
| M22 | 22 | 0.8661 | 32 |
| M27 | 27 | 1.063 | 41 |
| M33 | 33 | 1.2992 | 50 |
| M30 | 30 | 1.1811 | 46 |
| M36 | 36 | 1.4173 | 55 |
| M42 | 42 | 1.6535 | 65 |
| M39 | 39 | 1.5354 | 60 |
| M45 | 45 | 1.7717 | 70 |
| M52 | 52 | 2.0472 | 80 |
| M48 | 48 | 1.8898 | 75 |
| M56 | 56 | 2.2047 | 85 |
| M64 | 64 | 2.5197 | 95 |
| M60 | 60 | 2.3622 | 90 |
| M68 | 68 | 2.6772 | 100 |
| M76 | 76 | 2.9921 | 110 |
| M72 | 72 | 2.8346 | 105 |
| M80 | 80 | 3.1496 | 115 |
| M90 | 90 | 3.5433 | 130 |
| M85 | 85 | 3.3464 | 120 |
| M100 | 100 | 3.937 | 145 |
| M160 | 160 | 6.2992 | 230 |
| M125 | 125 | 4.9212 | 180 |
| M110 | 110 | 4.3307 | 155 |
| M140 | 140 | 5.5118 | 200 |
SS 317/317L Stud Bolt Torque Chart
| Flange Size | B16.5 Class 150 RF/ Ring Gaskets | B16.5 Class 150 FF/ Full Face Gaskets | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | |||||||
| 1st | 2nd | Final | Dwg/No. | Bolt Size | 1st | 2nd | Final | Dwg*/No. | Bolt Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 3/4″ | 13 | 27 | 40 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1″ | 15 | 30 | 50 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/4″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 2-1/2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3-1/2″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 4″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 8″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 10″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 12″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 14″ | 147 | 294 | 490 | 12-bolt | 1″ | 147 | 294 | 490 | 12-bolt | 1″ |
| 16″ | 147 | 294 | 490 | 16-bolt | 1″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 18″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 20″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ |
| 24″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ |
| Flange Size | B16.5 Class 300 RF/ Ring Gaskets | ||||
|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence* | ||||
| 1st | 2nd | Final | Dwg/No. | Stud Bolts Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ |
| 3/4″ | 15 | 30 | 50 | 4-bolt | 5/8″ |
| 1″ | 21 | 42 | 70 | 4-bolt | 5/8″ |
| 1-1/4″ | 30 | 60 | 100 | 4-bolt | 5/8″ |
| 1-1/2″ | 45 | 90 | 150 | 4-bolt | 3/4″ |
| 2″ | 33 | 66 | 110 | 8-bolt | 5/8″ |
| 2-1/2″ | 42 | 84 | 140 | 8-bolt | 3/4″ |
| 3″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 3-1/2″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 12-bolt | 3/4″ |
| 8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 10″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 12″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 14″ | 195 | 390 | 650 | 20-bolt | 1-1/8″ |
| 16″ | 273 | 546 | 910 | 20-bolt | 1-1/4″ |
| 18″ | 300 | 600 | 1,000 | 24-bolt | 1-1/4″ |
| 20″ | 300 | 600 | 1,000 | 24-bolt | 1-1/4″ |
| 24″ | 465 | 930 | 1,550 | 24-bolt | 1-1/2″ |
Weight Chart Of SS 317/317L Stud Bolts
| Weight Imperial | |||||||||||||
| STUD BOLT LENGTH (in inches) | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1.3/8 | 1 1/2 | 1.5/8 | 1.3/4 | 1 7/8 | |
| 2.1/2 | 10.8 | ||||||||||||
| 2.3/4 | 11.6 | 19.8 | |||||||||||
| 3.1/4 | 12.4 | 21 | 32.4 | ||||||||||
| 3.1/2 | 13.2 | 22.2 | 34.3 | 50 | |||||||||
| 4 | 14 | 23.4 | 36.2 | 52.6 | 71.8 | ||||||||
| 4.1/2 | 14.8 | 24.6 | 38.1 | 55.2 | 75.2 | 102 | |||||||
| 4.3/4 | 15.6 | 25.8 | 40 | 57.8 | 78.6 | 106 | 137 | ||||||
| 5 | 16.4 | 27 | 41.9 | 60.4 | 82 | 111 | 142 | 179 | |||||
| 5.1/2 | 17.2 | 28.2 | 43.8 | 63 | 85.4 | 115 | 147 | 186 | 234 | ||||
| 6 | 18 | 29.4 | 45.7 | 65.6 | 88.8 | 119 | 153 | 193 | 242 | 289 | |||
| 6.1/4 | 18.8 | 30.6 | 47.6 | 68.2 | 92.2 | 123 | 158 | 200 | 250 | 298 | 263 | ||
| 6.1/2 | 19.6 | 32.3 | 49.5 | 70.8 | 95.6 | 128 | 164 | 206 | 258 | 308 | 374 | 437 | |
| 7 | 20.4 | 33.5 | 50.8 | 73.4 | 99 | 132 | 169 | 213 | 266 | 317 | 385 | 449 | |
| 7.1/2 | 21.2 | 34.8 | 52.7 | 75.5 | 103 | 136 | 174 | 220 | 275 | 326 | 396 | 462 | |
| 8 | 22 | 36.1 | 54.5 | 78 | 106 | 141 | 180 | 226 | 283 | 336 | 407 | 475 | |
| 8.1/4 | 37.3 | 56.3 | 80.5 | 108 | 145 | 185 | 233 | 291 | 345 | 418 | 488 | ||
| 8.3/4 | 38.6 | 58.1 | 83.1 | 112 | 149 | 191 | 240 | 299 | 354 | 429 | 500 | ||
| 9 | 39.8 | 60 | 85.6 | 115 | 153 | 196 | 246 | 307 | 364 | 440 | 513 | ||
| 9.1/2 | 41.1 | 61.8 | 88.2 | 118 | 158 | 201 | 253 | 316 | 373 | 451 | 526 | ||
| 10 | 63.7 | 90.7 | 122 | 162 | 206 | 260 | 324 | 382 | 463 | 538 | |||
| 10/1.4 | 93.3 | 125 | 166 | 212 | 267 | 332 | 391 | 474 | 551 | ||||
| 1.0.1/2 | 128 | 171 | 217 | 273 | 340 | 401 | 485 | 564 | |||||
| 11 | 132 | 175 | 223 | 279 | 345 | 410 | 496 | 576 | |||||
| 11.1/2 | 135 | 179 | 228 | 285 | 350 | 419 | 507 | 589 | |||||
| 12 | 138 | 184 | 233 | 292 | 358 | 429 | 518 | 602 | |||||
| Weight Of Metric Studs Bolt | |||||||||||||
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
| 60 | 5,6 | 8,1 | 12 | 15,6 | |||||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | 23,7 | ||||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 25,4 | 32,5 | |||||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 27,1 | 34,5 | 45,5 | ||||||
| 100 | 7,6 | 11 | 16 | 21 | 28,8 | 36,7 | 47,2 | 54,2 | |||||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 30,4 | 38,7 | 48,3 | 58,2 | 80 | ||||
| 120 | 8,6 | 12,4 | 18 | 23,6 | 32,1 | 40,7 | 50,9 | 60,2 | 84,7 | 107 | |||
| 130 | 9,1 | 13,2 | 19 | 24,9 | 33,7 | 42,8 | 53,4 | 63,2 | 88,6 | 111 | 141 | ||
| 140 | 9,6 | 14,2 | 20 | 26,2 | 35,4 | 44,9 | 55,9 | 66,2 | 92,4 | 116 | 147 | 185 | |
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 36,9 | 46,9 | 58,5 | 69,2 | 96,3 | 121 | 153 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 38,6 | 49 | 61 | 72,2 | 100,1 | 126 | 159 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 40,2 | 51,1 | 63,5 | 75,2 | 104 | 130 | 165 | 206 | 253 | |
| 180 | 23,8 | 31,8 | 41,9 | 52,3 | 66,1 | 78,1 | 108 | 135 | 171 | 213 | 261 | ||
| 190 | 33,1 | 43,5 | 54,4 | 68,4 | 81,1 | 112 | 140 | 176 | 219 | 269 | |||
| 200 | 34,5 | 45,2 | 56,2 | 71 | 84 | 116 | 144 | 182 | 226 | 278 | |||
| 210 | 35,8 | 46,8 | 58,5 | 73,5 | 88,4 | 120 | 149 | 188 | 233 | 286 | |||
| 220 | 37,1 | 48,4 | 60,6 | 76,1 | 91,4 | 124 | 154 | 194 | 240 | 294 | |||
| 230 | 38,5 | 50,1 | 62,6 | 78,6 | 94,4 | 127 | 159 | 201 | 247 | 302 | |||
| 240 | 39,8 | 51,7 | 64,7 | 81,2 | 97,4 | 130,9 | 164 | 208 | 253 | 310 | |||
| 250 | 41,1 | 53,4 | 66,8 | 83,7 | 100,4 | 134,8 | 172 | 214 | 260 | 319 | |||
| 260 | 55 | 68,8 | 86,3 | 103,4 | 138,6 | 177 | 220 | 267 | 327 | ||||
| 270 | 56,6 | 70,9 | 88,8 | 106,4 | 142,5 | 182 | 224 | 274 | 335 | ||||
| 280 | 58,3 | 73 | 91,4 | 109,4 | 146,3 | 187 | 230 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 150,1 | 192 | 236 | 291 | 360 | |||||
| 300 | 77,1 | 96,5 | 115,4 | 154 | 196 | 241 | 298 | 368 | |||||
| 320 | 101,6 | 121,3 | 161,7 | 206 | 253 | 312 | 380 | ||||||
| 340 | 127,3 | 169,4 | 215 | 265 | 326 | 395 | |||||||
| 360 | 133,3 | 177,1 | 224 | 276 | 340 | 411 | |||||||
| 380 | 184,8 | 234 | 288 | 353 | 428 | ||||||||
| 400 | 192,5 | 243 | 299 | 367 | 444 | ||||||||
| 420 | 252 | 311 | 381 | 460 | |||||||||
| 440 | 262 | 322 | 394 | 477 | |||||||||
| 460 | 271 | 334 | 408 | 493 | |||||||||
| 480 | 281 | 345 | 422 | 509 | |||||||||
| 500 | 290 | 357 | 436 | 526 | |||||||||
Test Certificates Of Stainless Steel 317/317L Stud Bolt
- Mill Test Report
- Raw Materials Certificate
- EN 10204/3.1B
- Third Party Inspection Report
- 100% Radiography Test Report
Stock List Of Stainless Steel 317/317L Stud Bolt
- UNS S31703 Metric Thread Stud Bolt
- 317 Stainless Steel Half Thread Stud Bolt
- Stainless Steel SUS 317L Heavy Stud Bolt
- 317L Stainless Steel Single End Stud Bolt
- ASME SA193 317L SS Full Threaded Stud Bolt
- ASME SA193 317 Stainless Steel Threaded Stud Bolts
- Stainless Steel 317 Continuous Thread Stud Bolt
- SS 317L Double End Stud Bolts Stockist
- 317 SS Continuous Thread Stud Bolt Exporter
- Stainless Steel 317 Double Ended Stud
- SS 317 Tap End Stud Bolts Supplier
- 317 Stainless Steel Threaded Rod
- Stainless Steel 317 Studs
- ASTM A193 SS 317 Flush Head Studs
- Stainless Steel ASTM A193 317 Tie Rods
- Stainless Steel 317L Stud Bolts
- DIN 1.4438 Weld Studs
- 1.4438 Threaded Rod
- 317L Stainless Steel Studs
- DIN 1.4449 Continuous Thread Stud Bolt
- Stainless Steel 317 Drywall Stud
- 317 Stainless Steel Stud Bolts With Reduced Shank
- ASTM A193 317 Stainless Steel Threaded Studs
- UNS S31703 Stud Bolt
- AISI 317L Wheel Lug Stud Bolt
- 317 Stainless Steel High Pressure Stud Bolt
- Grade 317L SS Stud Bolts Manufacturer
- Stainless Steel 317 Tie Bars
- Stainless Steel 317 Partial Threaded Stud Bolt
- Stainless Steel 317 Heavy Stud Bolt Distributor
- 317 SS Stud Bolt Dealer
- Stainless Steel 317 Industrial Stud Bolts Price
- 317L Stainless Steel M16 Stud Bolt
- UNS S31700 Studs
Chemical Composition of SS 317/317L Stud Bolt
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
Mechanical Properties of Stainless Steel 317/317L Stud Bolt
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 317/317L Stud Bolt Uses and Application
- Nuclear Energy Sector
- Offshore & Chemical Industry
- Engineering & Aerospace Industry
- Automotive industry
- Oil & Gas Industries
- Power Generation
- Architectural Trim and Molding
- Kitchen Benches, Sinks, Equipment
- Food Processing Equipment
Previous
Next
Stainless Steel 317/317L Stud Bolt Export Countries
Qatar, Thailand, Iran, Belarus, Ecuador, Poland, Ukraine, Serbia, Brazil, Mongolia, India, Israel, Malaysia, Norway, Sri Lanka, Iraq, Greece, Vietnam, Lithuania, Austria, Algeria, Finland, Jordan, New Zealand, Ghana, Libya, Poland, Oman, United Kingdom, Chile, Estonia, Iran, Saudi Arabia, United States, China, Chile, Singapore, Nigeria, Czech Republic, Azerbaijan, Australia, Bulgaria, Italy, Japan, Pakistan, Spain, Bangladesh, Nigeria, Mexico, Venezuela, Hungary, Yemen, Peru, Egypt, Romania, Lebanon, Portugal, Russia, Kuwait, Gabon, Philippines, Turkey, Switzerland, Trinidad & Tobago,Tunisia, Bolivia, United Arab Emirates, Canada, Indonesia, Croatia, France, Argentina, Netherlands, Morocco, Bahrain, Hong Kong, Colombia, Taiwan, Sweden, South Korea, Kazakhstan, Slovakia, Kenya, Angola, South Africa, Mexico, Belgium, Costa Rica, Bhutan, Denmark, Afghanistan.
SS Fasteners
Fasteners
Product Categories
Have Any Questions ?
Please feel free to contact us. We will get back to you with 2 business days. Or just call us now.
Buy Stainless Steel 317 Stud Bolt and SS 317 Studs, 317L SS Stud Bolt At Factory Price In India
