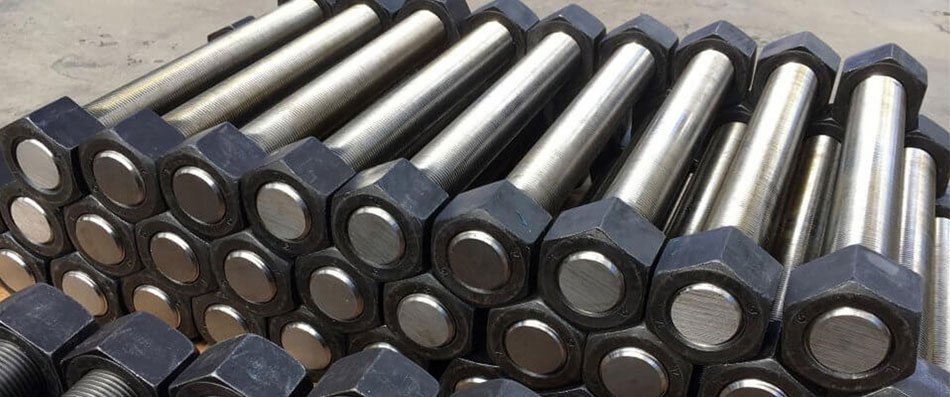

Stainless Steel 321 Stud Bolt
SS 321 Double End Stud Bolts, Stainless Steel 321 Industrial Stud Bolts, 321 Stainless Steel Studs, SS 321 Stud Bolts, Suppliers of SS 321 Stud Bolts, 321 Stainless Steel Tap End Stud Bolts, 321 Stainless Steel Stud Bolts At Factory Price In India.
Vintex Steel & Engg. Co. is one of the well-known distributor of SS 321 Stud Bolts, which has exceptional corrosion resistance and is utilized in Aerospace and Industrial applications.
A small however sharp pressure height arose for the duration of anxiety following compression in Stainless Steel UNS S32100 Stud Bolts while loaded within the rolling direction, and the incidence of a pressure height became retarded while the sheet became subjected to cyclic loading. Being notably single-segment material, the microstructure of the alpha segment in Stud Bolts isn’t affected significantly with the aid of using thermal remedies or welding temperatures. Generally, they’re heavy due to the fact they include alloying elements which includes molybdenum which has a particularly excessive density. They are found in masses off changed options & broadly demanded to make titanium, that’s similarly utilized in chemical methods and manufacturing system components.
321 SS Tie Rods, UNS S32100 Full Threaded Stud Bolt, UNS S32100 Single End Stud Bolt, SS 321 Stud Bolts Manufacturer India, Stainless Steel 321 Threaded Rod Stockist, 321 SS Half Thread Stud Bolts, 1.4541 Stud Bolt Supplier, SS 321 Stud Bolts Manufacturer In India.
Table of Content
- Material Specification Chart Of Stainless Steel 321 Stud Bolt
- Stainless Steel 321 Stud Bolt Equivalent Grade
- Most Commonly used Stainless Steel 321 Stud Bolt Types
- Stainless Steel 321 Stud Bolt Available Standards
- Size Chart Of 321 Stainless Steel Stud Bolt
- Dimensions of SS 321 Stud Bolts
- SS 321 Stud Bolt Torque Chart
- Weight Chart Of SS 321 Stud Bolt
- Stock List Of Stainless Steel 321 Stud Bolt
- Chemical Composition of SS 321 Stud Bolt
- Mechanical Properties of Stainless Steel 321 Stud Bolt
- Stainless Steel 321 Stud Bolt Uses and Application
- Stainless Steel 321 Stud Bolt Export Countries
They are as properly utilized in various chemical exercise system in addition to in aeronautical and marine applications. These behaviours did now no longer rise up while our Stainless Steel DIN 1.4541 Stud Bolts have been loaded in different directions, in which the sort of energetic dual mode became distinct relying at the loading path. A widening of the dimensions’ distribution and a growth of the brink incubation dose (TID) in Stud Bolts is stated with the temperature. We are one of the maximum reputed Importers and Exporters of our Stud Bolts in India, in which the particular strengths of alloys are as compared with the ones of different structural metals.
The corrosion resistance of Stud Bolts is beneficial to guard in opposition to crevice erosion and decreasing acid in chloride environments. It has strength / modulus of elasticity ratios nearly two times the ones of 18-eight austenitic stainless-steel, large elastic deflections in springs, and decreased pressure in line with unit displacement under the ones of stainless-steel appliances. The oxide scale of 321 Stainless Steel Stud Bolts ought to be eliminated routinely or chemically after treatment; therefore, portions have to be designed accordingly. Conditions beneath which Stud Bolts is prone to corrosion are strongly decreasing acids, alkaline peroxide solutions, and molten chloride salts.
Material Specification Chart Of Stainless Steel 321 Stud Bolt
| Specification | ASTM A193 / ASME SA 193 |
|---|---|
| Size | M02 to M33, Custom Sizes |
| Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Stud Bolts | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Stud Bolts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Stud Bolts finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Stainless Steel 321 Stud Bolt Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
Most Commonly used Stainless Steel 321 Stud Bolt Types
SS 321 Double Ended Stud Bolt
- S32100 Double Ended Stud Bolt
- SS 321 Double Ended Wheel Stud
- 321 SS Double End Studs
- 1.4541 Double Ended Stud Bolt
- Stainless Steel 321 Double Ended Stud Bolt
- UNS S32100 Dual Threaded Stud
- 1.4541 M6 Double End Stud
SS 321 Tap End Stud Bolt
- S32100 Tap End Stud
- 321 SS Tap End Stud
- 1.4541 Tap End Stud Bolt
- SS 321 M12 Tap End Stud Bolt
- Stainless Steel 321 Tap End Stud Bolt
- UNS S32100 Tap End Stud Bolt
- 1.4541 Tap End Stud
SS 321 Single End Stud Bolt
- 1.4541 Single Ended Stud Bolt
- 321 SS Single End Studs
- SS 321 Single Ended Stud
- UNS S32100 Single Ended Threaded Stud
- Stainless Steel 321 Single Ended Stud Bolt
- 1.4541 M6 Single End Stud
- S32100 Single Ended Stud Bolt
SS 321 Threaded Rod
- S32100 Fully Threaded Rod
- UNS S32100 Threaded Stud
- 1.4541 Threaded Ends 321 SS Threaded Studs
- SS 321 Threaded Rod
- Stainless Steel 321 Threaded Rod
- 1.4541 M5 Threaded Rod
SS 321 Tie Rod
- 1.4541 Upper Tie Rod
- 1.4541 Front Inner Tie Rods
- SS 321 Tie Rod
- UNS S32100 Inner Tie Rod
- Stainless Steel 321 Tie Rod
- 321 SS Tie Rod End
- S32100 Inner & Outer Tie Rod
SS 321 Flush Head Stud
- S32100 Flush Head Clinch Studs
- 1.4541 Flush Head Self Clinching Studs
- 321 SS Self Clinch Flush Head Stud
- 1.4541 Flush Head Studs
- SS 321 Self Clinching Stud
- Stainless Steel 321 Flush Head Stud
- UNS S32100 Flush Head Studs
SS 321 Stud
- 321 SS Weld Studs
- 1.4541 Studs
- SS 321 Studs
- UNS S32100 Clinch Stud
- S32100 Dowel Studs
- Stainless Steel 321 Stud
SS 321 Stud Bolt
- S32100 Stud Bolts
- SS 321 Stud Bolts
- 1.4541 Stud Bolt
- UNS S32100 Half Thread Stud Bolt
- Stainless Steel 321 Stud Bolt
- 321 SS Fully Threaded Stud Bolts
Stainless Steel 321 Stud Bolt Available Standards
| ASTM | ASTM A193 Stud Bolt | ASTM A307 Stud Bolt | ASTM A320 Stud Bolt |
| ASTM A325 Stud Bolt | ASTM A354 Stud Bolt | ASTM A449 Stud Bolt | |
| ASTM A490 Stud Bolt | ASTM F568 Stud Bolt | ASTM F593 Stud Bolt | |
| ASTM F1554 Stud Bolt | ASTM A325M Stud Bolt | ASTM A490M Stud Bolt | |
| IS | IS 1363 Stud Bolt | IS 1364 Stud Bolt | IS 2585 Stud Bolt |
| IS 3138 Stud Bolt | IS 3640 Stud Bolt | IS 10238 Stud Bolt | |
| IS 3757 Stud Bolt | IS 6639 Stud Bolt | ||
| DIN | DIN 931 Stud Bolt | DIN 933 Stud Bolt | DIN 938 Stud Bolt |
| DIN 939 Stud Bolt | DIN 960 Stud Bolt | DIN 961 Stud Bolt | |
| DIN 975 Stud Bolt | DIN 2510 Stud Bolt | DIN 7990 Stud Bolt | |
| DIN 610 Stud Bolt | DIN 6914 Stud Bolt | DIN 6915 Stud Bolt | |
| BS | BS 1083 Stud Bolt | BS 1768 Stud Bolt | BS 1769 Stud Bolt |
| ANSI / ASME | ASME B18.2.1 Stud Bolt | ASME B18.31.3 Stud Bolt | ASME B16.5 Stud Bolt |
| ANSI B18.2.1 Stud Bolt | ANSI / ASME B18.1.1 Stud Bolt | ||
| ISO | ISO 7412 Stud Bolt |
ANSI And/Or ASME Standards Stud Bolt (Inch Series)
| Description | Standard | Measurement System |
|---|---|---|
| Continuous Thread Stud Bolts | ANSI/ASME B18.31.2 | Inch Series |
| Stud Bolts with Chamfered End for Flange Bolting | ANSI/ASME B16.5 | Inch Series |
| Welding Studs / Weld Studs | DIN 525 | Metric |
| Double End Stud Bolts / Double Ended Studs | DIN 835 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 1 x Diameter | DIN 938 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 1.25 x Diameter | DIN 939 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 2.5 x Diameter | DIN 940 | Metric |
| Double End Studs With Thread Engagement Length Equals to 2D | DIN 949-1 | Metric |
| Double End Studs With Thread Engagement Length Equals to 2.5D | DIN 949-2 | Metric |
| Plain End Stud Bolts / Threaded Rods | DIN 975 | Inch Series |
| Plain End Stud Bolts / Threaded Rods | DIN 976 | Metric |
| Double End Studs / Stud Bolts | DIN 2509 | Metric |
| Double End Stud Bolts With Reduced Shank | DIN 2510 L, DIN 2510 Z, DIN 2510 K, DIN 2510 ZU/KU, DIN 2510 GP, DIN 2510 GQ, DIN 2510 GR, DIN 2510 GS, DIN 2510 HP | Metric |
| Studs / Stud Bolts | BS 2693 | Inch Series |
| Stud Bolts | BS 3692 | Metric |
| Double End Stud Bolts With Thread Engagement Length Equals to 1.5 x Diameter | BS 4439 | Metric |
| Stud Bolts | IS 1862 | Metric |
| Clamping Studs | IS 13178 | Metric |
We are One Of The Most Trusted Supplier Of 321 Stainless Steel Stud Bolt in India. For final SS 321 Stud Bolts Price List. Please Call on +91 22 6636 2645 or drop an E-Mail : sales@vintexsteel.com
Other Related Products
Size Chart Of 321 Stainless Steel Stud Bolt
| Class 150 Flanges ASME B16.5 (Stud bolt sizes) | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 1/2 | 2 3/8 | 5/8 | 4 | 1/2 | 2 1/4 | – | |
| 3/4 | 3 7/8 | 2 3/4 | 5/8 | 4 | 1/2 | 2 1/2 | – | |
| 1 | 4 1/4 | 3 1/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 1 1/4 | 4 5/8 | 3 1/2 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 1 1/2 | 5 | 3 7/8 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 2 | 6 | 4 3/4 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 2 1/2 | 7 | 5 1/2 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 | 7 1/2 | 6 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 1/2 | 8 1/2 | 7 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 4 | 9 | 7 1/2 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 5 | 10 | 8 1/2 | 7/8 | 8 | 3/4 | 3 3/4 | 4 1/4 | |
| 6 | 11 | 9 1/2 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 8 | 13 1/2 | 11 3/4 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 10 | 16 | 14 3/4 | 1 | 12 | 7/8 | 4 1/2 | 5 | |
| 12 | 19 | 17 | 1 | 12 | 7/8 | 4 3/4 | 5 1/4 | |
| 14 | 21 | 18 3/4 | 1 1/8 | 12 | 1 | 5 1/4 | 5 3/4 | |
| 16 | 23 1/2 | 21 1/4 | 1 1/8 | 16 | 1 | 5 1/4 | 5 3/4 | |
| 18 | 25 | 22 3/4 | 1 1/4 | 16 | 1 1/8 | 5 3/4 | 6 1/4 | |
| 20 | 27 1/2 | 25 | 1 1/4 | 20 | 1 1/8 | 6 1/4 | 6 3/4 | |
| 24 | 32 | 29 1/2 | 1 1/4 | 20 | 1 1/4 | 6 3/4 | 7 1/4 | |
| Class 300 Flanges ASME B16.5 | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 3/4 | 2 5/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 3/4 | 4 5/8 | 3 1/4 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 | 4 7/8 | 3 1/2 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 1/4 | 5 1/4 | 3 7/8 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 1 1/2 | 6 1/8 | 4 1/2 | 7/8 | 4 | 3/4 | 3 1/2 | 4 | |
| 2 | 6 1/2 | 5 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 2 1/2 | 7 1/2 | 5 7/8 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 3 | 8 1/4 | 6 5/8 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 3 1/2 | 9 | 7 1/4 | 7/8 | 8 | 3/4 | 4 1/4 | 5 | |
| 4 | 10 | 7 7/8 | 7/8 | 8 | 3/4 | 4 1/2 | 5 | |
| 5 | 11 | 9 1/4 | 7/8 | 8 | 3/4 | 4 3/4 | 5 1/4 | |
| 6 | 12 1/2 | 10 5/8 | 7/8 | 12 | 3/4 | 4 3/4 | 5 1/2 | |
| 8 | 15 | 13 | 1 | 12 | 7/8 | 5 1/2 | 6 | |
| 10 | 17 1/2 | 15 1/4 | 1 1/8 | 16 | 1 | 6 1/4 | 6 3/4 | |
| 12 | 20 1/2 | 17 3/4 | 1 1/4 | 16 | 1 1/8 | 6 3/4 | 7 1/4 | |
| 14 | 23 | 20 1/4 | 1 1/4 | 20 | 1 1/8 | 7 | 7 1/2 | |
| 16 | 25 1/2 | 22 1/2 | 1 3/8 | 20 | 1 1/4 | 7 1/2 | 8 | |
| 18 | 28 | 24 3/4 | 1 3/8 | 24 | 1 1/4 | 7 3/4 | 8 1/4 | |
| 20 | 30 1/2 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 8 3/4 | |
| 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 10 | |
Dimensions of SS 321 Stud Bolts
| Diameter | Diameter in mm | Diameter in inch | Nut Sizes |
|---|---|---|---|
| M12 | 12 | 0.4724 | 19 |
| M10 | 10 | 0.3937 | 17 |
| M14 | 14 | 0.5512 | 22 |
| M18 | 18 | 0.7087 | 27 |
| M16 | 16 | 0.6299 | 24 |
| M20 | 20 | 0.7874 | 30 |
| M24 | 24 | 0.9449 | 36 |
| M22 | 22 | 0.8661 | 32 |
| M27 | 27 | 1.063 | 41 |
| M33 | 33 | 1.2992 | 50 |
| M30 | 30 | 1.1811 | 46 |
| M36 | 36 | 1.4173 | 55 |
| M42 | 42 | 1.6535 | 65 |
| M39 | 39 | 1.5354 | 60 |
| M45 | 45 | 1.7717 | 70 |
| M52 | 52 | 2.0472 | 80 |
| M48 | 48 | 1.8898 | 75 |
| M56 | 56 | 2.2047 | 85 |
| M64 | 64 | 2.5197 | 95 |
| M60 | 60 | 2.3622 | 90 |
| M68 | 68 | 2.6772 | 100 |
| M76 | 76 | 2.9921 | 110 |
| M72 | 72 | 2.8346 | 105 |
| M80 | 80 | 3.1496 | 115 |
| M90 | 90 | 3.5433 | 130 |
| M85 | 85 | 3.3464 | 120 |
| M100 | 100 | 3.937 | 145 |
| M160 | 160 | 6.2992 | 230 |
| M125 | 125 | 4.9212 | 180 |
| M110 | 110 | 4.3307 | 155 |
| M140 | 140 | 5.5118 | 200 |
SS 321 Stud Bolt Torque Chart
| Flange Size | B16.5 Class 150 RF/ Ring Gaskets | B16.5 Class 150 FF/ Full Face Gaskets | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | |||||||
| 1st | 2nd | Final | Dwg/No. | Bolt Size | 1st | 2nd | Final | Dwg*/No. | Bolt Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 3/4″ | 13 | 27 | 40 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1″ | 15 | 30 | 50 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/4″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 2-1/2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3-1/2″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 4″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 8″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 10″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 12″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 14″ | 147 | 294 | 490 | 12-bolt | 1″ | 147 | 294 | 490 | 12-bolt | 1″ |
| 16″ | 147 | 294 | 490 | 16-bolt | 1″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 18″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 20″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ |
| 24″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ |
| Flange Size | B16.5 Class 300 RF/ Ring Gaskets | ||||
|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence* | ||||
| 1st | 2nd | Final | Dwg/No. | Stud Bolts Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ |
| 3/4″ | 15 | 30 | 50 | 4-bolt | 5/8″ |
| 1″ | 21 | 42 | 70 | 4-bolt | 5/8″ |
| 1-1/4″ | 30 | 60 | 100 | 4-bolt | 5/8″ |
| 1-1/2″ | 45 | 90 | 150 | 4-bolt | 3/4″ |
| 2″ | 33 | 66 | 110 | 8-bolt | 5/8″ |
| 2-1/2″ | 42 | 84 | 140 | 8-bolt | 3/4″ |
| 3″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 3-1/2″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 12-bolt | 3/4″ |
| 8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 10″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 12″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 14″ | 195 | 390 | 650 | 20-bolt | 1-1/8″ |
| 16″ | 273 | 546 | 910 | 20-bolt | 1-1/4″ |
| 18″ | 300 | 600 | 1,000 | 24-bolt | 1-1/4″ |
| 20″ | 300 | 600 | 1,000 | 24-bolt | 1-1/4″ |
| 24″ | 465 | 930 | 1,550 | 24-bolt | 1-1/2″ |
Weight Chart Of SS 321 Stud Bolts
| Weight Imperial | |||||||||||||
| STUD BOLT LENGTH (in inches) | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1.3/8 | 1 1/2 | 1.5/8 | 1.3/4 | 1 7/8 | |
| 2.1/2 | 10.8 | ||||||||||||
| 2.3/4 | 11.6 | 19.8 | |||||||||||
| 3.1/4 | 12.4 | 21 | 32.4 | ||||||||||
| 3.1/2 | 13.2 | 22.2 | 34.3 | 50 | |||||||||
| 4 | 14 | 23.4 | 36.2 | 52.6 | 71.8 | ||||||||
| 4.1/2 | 14.8 | 24.6 | 38.1 | 55.2 | 75.2 | 102 | |||||||
| 4.3/4 | 15.6 | 25.8 | 40 | 57.8 | 78.6 | 106 | 137 | ||||||
| 5 | 16.4 | 27 | 41.9 | 60.4 | 82 | 111 | 142 | 179 | |||||
| 5.1/2 | 17.2 | 28.2 | 43.8 | 63 | 85.4 | 115 | 147 | 186 | 234 | ||||
| 6 | 18 | 29.4 | 45.7 | 65.6 | 88.8 | 119 | 153 | 193 | 242 | 289 | |||
| 6.1/4 | 18.8 | 30.6 | 47.6 | 68.2 | 92.2 | 123 | 158 | 200 | 250 | 298 | 263 | ||
| 6.1/2 | 19.6 | 32.3 | 49.5 | 70.8 | 95.6 | 128 | 164 | 206 | 258 | 308 | 374 | 437 | |
| 7 | 20.4 | 33.5 | 50.8 | 73.4 | 99 | 132 | 169 | 213 | 266 | 317 | 385 | 449 | |
| 7.1/2 | 21.2 | 34.8 | 52.7 | 75.5 | 103 | 136 | 174 | 220 | 275 | 326 | 396 | 462 | |
| 8 | 22 | 36.1 | 54.5 | 78 | 106 | 141 | 180 | 226 | 283 | 336 | 407 | 475 | |
| 8.1/4 | 37.3 | 56.3 | 80.5 | 108 | 145 | 185 | 233 | 291 | 345 | 418 | 488 | ||
| 8.3/4 | 38.6 | 58.1 | 83.1 | 112 | 149 | 191 | 240 | 299 | 354 | 429 | 500 | ||
| 9 | 39.8 | 60 | 85.6 | 115 | 153 | 196 | 246 | 307 | 364 | 440 | 513 | ||
| 9.1/2 | 41.1 | 61.8 | 88.2 | 118 | 158 | 201 | 253 | 316 | 373 | 451 | 526 | ||
| 10 | 63.7 | 90.7 | 122 | 162 | 206 | 260 | 324 | 382 | 463 | 538 | |||
| 10/1.4 | 93.3 | 125 | 166 | 212 | 267 | 332 | 391 | 474 | 551 | ||||
| 1.0.1/2 | 128 | 171 | 217 | 273 | 340 | 401 | 485 | 564 | |||||
| 11 | 132 | 175 | 223 | 279 | 345 | 410 | 496 | 576 | |||||
| 11.1/2 | 135 | 179 | 228 | 285 | 350 | 419 | 507 | 589 | |||||
| 12 | 138 | 184 | 233 | 292 | 358 | 429 | 518 | 602 | |||||
| Weight Of Metric Studs Bolt | |||||||||||||
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
| 60 | 5,6 | 8,1 | 12 | 15,6 | |||||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | 23,7 | ||||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 25,4 | 32,5 | |||||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 27,1 | 34,5 | 45,5 | ||||||
| 100 | 7,6 | 11 | 16 | 21 | 28,8 | 36,7 | 47,2 | 54,2 | |||||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 30,4 | 38,7 | 48,3 | 58,2 | 80 | ||||
| 120 | 8,6 | 12,4 | 18 | 23,6 | 32,1 | 40,7 | 50,9 | 60,2 | 84,7 | 107 | |||
| 130 | 9,1 | 13,2 | 19 | 24,9 | 33,7 | 42,8 | 53,4 | 63,2 | 88,6 | 111 | 141 | ||
| 140 | 9,6 | 14,2 | 20 | 26,2 | 35,4 | 44,9 | 55,9 | 66,2 | 92,4 | 116 | 147 | 185 | |
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 36,9 | 46,9 | 58,5 | 69,2 | 96,3 | 121 | 153 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 38,6 | 49 | 61 | 72,2 | 100,1 | 126 | 159 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 40,2 | 51,1 | 63,5 | 75,2 | 104 | 130 | 165 | 206 | 253 | |
| 180 | 23,8 | 31,8 | 41,9 | 52,3 | 66,1 | 78,1 | 108 | 135 | 171 | 213 | 261 | ||
| 190 | 33,1 | 43,5 | 54,4 | 68,4 | 81,1 | 112 | 140 | 176 | 219 | 269 | |||
| 200 | 34,5 | 45,2 | 56,2 | 71 | 84 | 116 | 144 | 182 | 226 | 278 | |||
| 210 | 35,8 | 46,8 | 58,5 | 73,5 | 88,4 | 120 | 149 | 188 | 233 | 286 | |||
| 220 | 37,1 | 48,4 | 60,6 | 76,1 | 91,4 | 124 | 154 | 194 | 240 | 294 | |||
| 230 | 38,5 | 50,1 | 62,6 | 78,6 | 94,4 | 127 | 159 | 201 | 247 | 302 | |||
| 240 | 39,8 | 51,7 | 64,7 | 81,2 | 97,4 | 130,9 | 164 | 208 | 253 | 310 | |||
| 250 | 41,1 | 53,4 | 66,8 | 83,7 | 100,4 | 134,8 | 172 | 214 | 260 | 319 | |||
| 260 | 55 | 68,8 | 86,3 | 103,4 | 138,6 | 177 | 220 | 267 | 327 | ||||
| 270 | 56,6 | 70,9 | 88,8 | 106,4 | 142,5 | 182 | 224 | 274 | 335 | ||||
| 280 | 58,3 | 73 | 91,4 | 109,4 | 146,3 | 187 | 230 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 150,1 | 192 | 236 | 291 | 360 | |||||
| 300 | 77,1 | 96,5 | 115,4 | 154 | 196 | 241 | 298 | 368 | |||||
| 320 | 101,6 | 121,3 | 161,7 | 206 | 253 | 312 | 380 | ||||||
| 340 | 127,3 | 169,4 | 215 | 265 | 326 | 395 | |||||||
| 360 | 133,3 | 177,1 | 224 | 276 | 340 | 411 | |||||||
| 380 | 184,8 | 234 | 288 | 353 | 428 | ||||||||
| 400 | 192,5 | 243 | 299 | 367 | 444 | ||||||||
| 420 | 252 | 311 | 381 | 460 | |||||||||
| 440 | 262 | 322 | 394 | 477 | |||||||||
| 460 | 271 | 334 | 408 | 493 | |||||||||
| 480 | 281 | 345 | 422 | 509 | |||||||||
| 500 | 290 | 357 | 436 | 526 | |||||||||
Test Certificates Of Stainless Steel 321 Stud Bolt
- Mill Test Report
- Raw Materials Certificate
- EN 10204/3.1B
- Third Party Inspection Report
- 100% Radiography Test Report
Stock List Of Stainless Steel 321 Stud Bolt
- ASTM A193 SS 321 Flush Head Studs
- 321 SS Continuous Thread Stud Bolt Exporter
- ASME SA193 321 SS Full Threaded Stud Bolt
- DIN 1.4541 Weld Studs
- Stainless Steel 321 Continuous Thread Stud Bolt
- SS 321 Double End Stud Bolts Stockist
- 321 Stainless Steel Half Thread Stud Bolt
- Stainless Steel 321 Stud Bolts
- 321 Stainless Steel Single End Stud Bolt
- Stainless Steel 321 Studs
- ASME SA193 321 Stainless Steel Threaded Stud Bolts
- Stainless Steel ASTM A193 321 Tie Rods
- 321 Stainless Steel Threaded Rod
- Stainless Steel SUS 321 Heavy Stud Bolt
- SS 321 Tap End Stud Bolts Supplier
- Stainless Steel 321 Double Ended Stud
- UNS S32100 Metric Thread Stud Bolt
- ASTM A193 321 Stainless Steel Threaded Studs
- 321 SS Stud Bolt Dealer
- Stainless Steel 321 Partial Threaded Stud Bolt
- UNS S32100 Studs
- Stainless Steel 321 Tie Bars
- Stainless Steel 321 Drywall Stud
- DIN 1.4541 Continuous Thread Stud Bolt
- 321 Stainless Steel M16 Stud Bolt
- UNS S32100 Stud Bolt
- Stainless Steel 321 Industrial Stud Bolts Price
- 321 Stainless Steel Studs
- Grade 321 SS Stud Bolts Manufacturer
- 1.4541 Threaded Rod
- Stainless Steel 321 Heavy Stud Bolt Distributor
- AISI 321 Wheel Lug Stud Bolt
- 321 Stainless Steel Stud Bolts With Reduced Shank
- 321 Stainless Steel High Pressure Stud Bolt
Chemical Composition of SS 321 Stud Bolt
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
Mechanical Properties of Stainless Steel 321 Stud Bolt
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 321 Stud Bolt Uses and Application
- Nuclear Energy Sector
- Offshore & Chemical Industry
- Engineering & Aerospace Industry
- Automotive industry
- Oil & Gas Industries
- Power Generation
- Architectural Trim and Molding
- Kitchen Benches, Sinks, Equipment
- Food Processing Equipment
Previous
Next
Stainless Steel 321 Stud Bolt Export Countries
Chile, China, Kuwait, Iran, Angola, Poland, Bulgaria, Chile, Gabon, Turkey, Spain, Bahrain, India, Hungary, New Zealand, Bolivia, Peru, Argentina, Canada, Lebanon, Poland, Qatar, Bangladesh, Lithuania, Australia, Sri Lanka, Morocco, Italy, United Arab Emirates, Algeria, Portugal, Russia, Trinidad & Tobago,Tunisia, Belgium, Kazakhstan, Vietnam, Indonesia, Saudi Arabia, Greece, Romania, Czech Republic, Iran, Philippines, Venezuela, Singapore, Malaysia, Netherlands, South Korea, Egypt, Finland, Mongolia, Serbia, Azerbaijan, Belarus, Brazil, Norway, Oman, France, Ghana, Ecuador, Japan, Slovakia, Iraq, Estonia, Thailand, Croatia, Afghanistan, United Kingdom, Denmark, Ukraine, Pakistan, Libya, Hong Kong, Switzerland, Nigeria, Yemen, Mexico, Costa Rica, Israel, Sweden, Colombia, Taiwan, South Africa, United States, Jordan, Kenya, Nigeria, Mexico, Bhutan, Austria.
SS Fasteners
Fasteners
Product Categories
Have Any Questions ?
Please feel free to contact us. We will get back to you with 2 business days. Or just call us now.
Buy Stainless Steel 321 Stud Bolt and SS 321 Studs, 321 SS Stud Bolt At Factory Price In India
