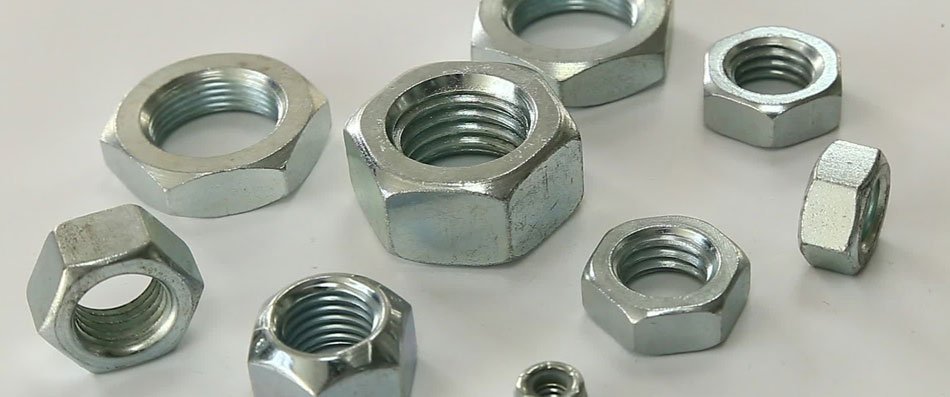

Stainless Steel 347/347H Nuts

SS 347 Dome Nuts, Suppliers of SS 347H Nuts, 347 Stainless Steel Hex Nuts, 347 Stainless Steel Nuts, Stainless Steel 347H Industrial Nuts, Type 347 Stainless Steel Nuts At Factory Price In India.

Stainless Steel 347 / 347H Nuts

Vintex Steel & Engg. Co. is one of the recognized exporter of Stainless Steel 347 / 347H Nuts, which are Flat Clean, Shot Blasted and Primed Finished Products.

It isn’t supposed for similarly warmth remedy and make certain that merchandise supplied by means of us are at affordable cost. Especially acceptable for excessive put on conditions, Stainless Steel UNS S34700 Nuts can nevertheless be reducing and welded, making it a first rate preference for excessive-overall performance packages. Delivering a hardness, it gives a completely unique aggregate of weldability, hardness and toughness. The transport situation is quenched, in which Nuts are brought with sheared or thermally reduce edges and untrimmed edges after agreement.

SS 347H Wing Nuts, UNS S34700 Nuts, SS 347 Nuts Manufacturer, 1.4961 Coupling Nut Supplier, 1.4550 Heavy Hex Nut, 347H SS Serrated Flange Nuts, Stainless Steel 347H Square Nut Stockist, UNS S34709 Coupling Nut, SS 347 Hex Nuts, SS 347H Acorn Nuts Manufacturer In India.

Table of Content

It is an abrasion resistant plate with a hardness of six hundred HBW, anticipated for packages in which requests are compelled on abrasion resistant in blend with awesome cold twisting homes. Stainless Steel UNS S34709 Nuts is to be had in specific form length and thickness in keeping with the desires of our customer. It represents a sizeable step within the improvement of 4 excessive mill rolled quenched and tempered put on resistant metallic plate. It brings a stage of user-friendliness now no longer discovered in lots of different steels designed for excessive put on resistance and removes the want to sacrifice put on resistance to beautify effect strength. It has acquired its mechanical homes by means of quenching and while vital via next tempering.

It has Thorough Hardened homes for Long Wear Life, High Impact Properties, Excellent Cold Bending & Welding Properties, Grain-Refined, etc. The homes of the transport situation for Nuts can’t be retained after publicity to provider or preheating temperatures in extra of 250 Degree C (480 Degree F). We supply Stainless Steel WNR 1.4550 Nuts to across the world accepted excellent requirements for packages, which similarly have first rate excellent to completely fulfil customer’s requirements. It is bendable and weldable abrasion-resistant metallic, with a nominal hardness of 500 HBW. It has acquired its mechanical homes by means of quenching and while vital via next tempering.

Material Specification Chart Of Stainless Steel 347/347H Nuts

Specification ASTM A194 / ASME SA194
Standard DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards
Size Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length 3 mm to 200 mm
Threads METRIC, BSW, BSF, UNC, UNF or as required
Standard ANSI – American National Standards Institute
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • ASME B18.2.2
  • ASME B18.5
DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
In Form of Hex, Square, Round, Threading as per Gauge Etc.
Head drive Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate: Manufacturer Test Certificate as per EN 10204 / 3.1
Surface finishing Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Production process M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element
Surface Coating
  • Teflon Coated
  • Phosphate Coated
  • Zinc Coated
  • Ptfe Coated
  • Xylon Coated
  • Cadmium Coated
  • Hot Dipped Galvanizing Coated
All surface finishes offered including  Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Sherardized, Dacromet
Packing IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request

Stainless Steel 347/347H Nuts Equivalent Grade

STANDARDWERKSTOFF NR.UNSJISGOSTEN
SS 3471.4550S34700SUS 34708Ch18N12BX6CrNiNb18-10
SS 347H1.4961S34709SUS 347H–X6CrNiNb18-12

Most Commonly used Stainless Steel 347/347H Nuts Types

Hex Nuts
SS 347/347H Hex Nuts

  • 347H SS Hex Nuts
  • SS 347H Hex Nuts
  • 1.4961 Hexagon Nuts
  • 1.4550 Hex Nuts
  • UNS S34700 Hexagon Nuts
  • S34709 Hex Jam Nuts
  • Stainless Steel 347 Hex Nut

Heavy Hex Nuts
SS 347/347H Heavy Hex Nuts

  • 1.4550 Heavy Hex Nuts
  • 1.4961 Heavy Hex Nuts
  • S34700 Heavy Hex Nuts
  • UNS S34709 Heavy Hex Nut
  • 347H SS Heavy Hex Nuts
  • Stainless Steel 347 Heavy Hex Nuts
  • SS 347H Heavy Hex Nuts

Acorn Nuts
SS 347/347H Acorn Nuts

  • 347H SS Acorn Nuts
  • Stainless Steel 347 Acorn Nuts
  • 1.4550 Acorn Cap Nuts
  • SS 347H Acorn Hex Cap Nuts
  • 1.4961 Acorn Lock Nut
  • S34709 Acorn Head Nuts
  • UNS S34700 Acorn Nut

Wing Nuts
SS 347/347H Wing Nuts

  • Stainless Steel 347 Wing Nuts
  • S34709 Nylon Wing Nuts
  • 347H SS Wing Nuts
  • UNS S34700 Wing Nut
  • 1.4961 Panel Wing Nuts
  • SS 347H Locking Wing Nuts
  • 1.4550 Flange Wing Nuts

Serrated Flange Nuts
SS 347/347H Serrated Flange Nuts

    • UNS S34700 Serrated Flange Nuts
    • S34709 Flange Nuts Serrated
    • 347 SS Serrated Flange Nut
    • SS 347H Hex Serrated Flange Nuts
    • Stainless Steel 347 Serrated Flange Nuts
    • 1.4961 Serrated Flange Nuts

Nyloc Nuts
SS 347/347H Nyloc Nuts

  • 1.4550 Nylock Hex Nut
  • 347H SS Nylock Nut
  • SS 347H Nylock Wing Nuts
  • UNS S34700 Flanged Nyloc Nuts
  • Stainless Steel 347 Nyloc Nuts
  • 1.4961 Nyloc Dome Nut
  • S34709 Nylon Insert Locking Nuts

Panel Nuts
SS 347/347H Panel Nuts

  • Stainless Steel 347 Panel Nuts
  • 347H SS Hex Panel Nut
  • 1.4550 Panel Hex Nut
  • S34709 Panel Nuts
  • UNS S34700 Panel Nuts
  • SS 347H Panel Nuts
  • 1.4961 Panel Nut

Coupling Nuts
SS 347/347H Coupling Nuts

  • 347H SS Hex Coupling Nut
  • Stainless Steel 347 Coupling Nuts
  • S34709 Long Coupling Nuts
  • SS 347H Metric Coupling Nuts
  • UNS S34700 Round Coupling Nuts
  • 1.4961 Thread Coupling Nut
  • 1.4550 Acme Coupling Nut

Square Nuts
SS 347/347H Square Nuts

  • SS 347H Flat Square Nuts
  • 1.4550 Large Square Nuts
  • S34709 Metric Square Nuts
  • Stainless Steel 347 Square Nuts
  • 347H SS Union Square Nuts
  • UNS S34700 Square Weld Nuts
  • 1.4961 Square Nut

Dome Nuts
SS 347/347H Dome Nuts

  • 347H SS Dome Cap Nut
  • UNS S34700 Hexagon Domed Nuts
  • SS 347H Heavy Duty Dome Nut
  • Stainless Steel 347 Dome Nuts
  • S34709 Dome Head Nuts
  • 1.4550 Dome Nuts
  • 1.4961 Dome Hex Cap Nuts

T Nuts
SS 347/347H T Nuts

  • 1.4550 Captive T Nuts
  • 1.4961 Locking T Nuts
  • Stainless Steel 347 T Nuts
  • UNS S34700 T-Slot Nuts
  • SS 347H T Slot Nuts
  • 347H SS Metric T Nuts
  • S34709 Round T Nuts

Hex Head Nuts
SS 347/347H Hex Head Nuts

  • 1.4550 Hex Head Slotted Nuts
  • Stainless Steel 347 Hex Head Nuts
  • 1.4961 Hex Head Nuts
  • S34709 Hex Head Jam Nuts
  • UNS S34700 Hex Head Nuts
  • SS 347H Hex Head Nuts
  • 347H SS Finished Hex Head Nuts

Stainless Steel 347/347H Nuts Standard

DIN Nuts Hexagon Nuts
Din 315 Nuts DIN 934
Din 431 Nuts BS 1768
Din 555 Nuts BS 1769
Din 557 Nuts BS 1083
Din 562 Nuts BS 3692
Din 582 Nuts ISO 4032
Din 934 Nuts ISO 4033
Din 936 Nuts ANSI B18.2.2
Din 1587 Nuts
Din 6923 Nuts

Stainless Steel 347/347H Nuts Sizes

Size Chart Size Guide Dimensions
3/8″-16 Grade 5 Finished 1/2″-13 Yellow Grade 8 Finished 1/4″-20 Grade 2 NE Steel
5/16″-18 Grade 2 NE Steel Nylon Insert 1/2″-13 ASTM A563 Grade A Steel 3/8″-16 ASTM A563 Grade A Steel
3/4″-10 A194 2-H Plain Finish Heavy 5/8″-11 A194 2-H Plain Finish Heavy 3/8-16 Low Carbon Plated Heavy
5/16″-18 Acorn Stainless Steel Nuts 18-8 1/2″-13 Acorn Stainless Steel Nuts 18-8 5/16″-18 Case Hardened
5/8-18 3/4-16 5/8″-11 Case Hardened
7/8″-14 SAE J995 Grade 2 Plain Finish Steel 1″-8 SAE J995 Grade 2 Plain Finish Steel 3/8″-16 x 0.620″ – 0.655″ Width Bridge Spot
1/4″-20 Wide Spot Weld 3/4-10 x L2-1/4 x W1″Coupling 3/8-16 x L1-3/4 x W5/8 Coupling
1/4-20 Plated Cold 5/16-18 Plated Cold 1/2″-13 Grade A Plain Finish Steel Regular
3/8″-16 Grade A Finish Steel Regular 5/8″-11 Grade A Finish Steel Regular M6-1.0 Class 5 Finish Steel Regular

We are One Of The Most Trusted Supplier Of 347/347H Stainless Steel Nuts in India. For final SS 347H Nuts Price List. Please Call on +91 22 6636 2645 or drop an E-Mail : sales@vintexsteel.com

Other Related Products

Size Chart Of 347/347H Stainless Steel Nuts

Nut Size
(mm)		 Diameter*
(mm)		 Height
(mm)
Hex Nut Jam Nut Nylock Nut
2 4 1.6 1.2 –
2.5 5 2 1.6 –
3 5.5 2.4 1.8 4
4 7 3.2 2.2 5
5 8 4 2.7 5
6 10 5 3.2 6
7 11 5.5 3.5 –
8 13 6.5 4 8
10 17 8 5 10
12 19 10 6 12
14 22 11 7 14
16 24 13 8 16
18 27 15 9 18.5
20 30 16 10 20
* This is the diameter across the flats. It is also the size of wrench to use.

Dimensions of SS 347/347H Heavy Hex Nuts

Nominal Size or Basic Major Thread Diameter F G H
Width Across Flats Width Across Corners Thickness
Basic Max Min Max Min Basic Max Min
1/4 .2500 1/2 .500 .488 .577 .556 15/64 .250 .218
5/16 .3125 9/16 .562 .546 .650 .622 19/64 .314 .280
3/8 .3750 11/16 .688 .669 .794 .763 23/64 .377 .341
7/16 .4375 3/4 .750 .728 .866 .830 27/64 .441 .403
1/2 .5000 7/8 .875 .850 1.010 .969 31/64 .504 .464
9/16 .5625 15/16 .938 .909 1.083 1.037 35/64 .568 .526
5/8 .6250 1-1/16 1.062 1.031 1.227 1.175 39/64 .631 .587
3/4 .7500 1-1/4 1.250 1.212 1.443 1.382 47/64 .758 .710
7/8 .8750 1-7/16 1.438 1.394 1.660 1.589 55/64 .885 .833
1 1.0000 1-5/8 1.325 1.575 1.876 1.796 63/64 1.012 .956
1-1/8 1.1250 1-13/16 1.812 1.756 2.093 2.002 1-7/64 1.139 1.079
1-1/4 1.2500 2 2.000 1.938 2.309 2.209 1-7/32 1.251 1.187
1-3/8 1.3750 2-3/16 2.188 2.119 2.526 2.416 1-11/32 1.378 1.460
1-1/2 1.5000 2-3/8 2.375 2.300 2.742 2.622 1-15/32 1.505 1.433
1-5/8 1.6250 2-9/16 2.562 2.481 2.959 2.828 1-19/32 1.632 1.556
1-3/4 1.7500 2-3/4 2.750 2.662 3.175 3.035 1-23/32 1.759 1.679
2 2.0000 3-1/8 3.125 3.025 3.608 3.449 1-31/32 2.013 1.925
2-1/4 2.2500 3-1/2 3.500 3.388 4.041 3.862 2-13/64 2.251 2.155
2-1/2 2.5000 3-7/8 3.875 3.750 4.474 4.275 2-29/64 2.505 2.401
2-3/4 2.7500 4-1/4 4.250 4.112 4.907 4.688 2-45/64 2.759 2.647
3 3.0000 4-5/8 4.625 4.475 5.340 5.102 2-61/64 3.013 2.893
3-1/4 3.2500 5 5.000 4.838 5.774 5.515 3-3/16 3.252 3.124
3-1/2 3.5000 5-3/8 5.375 5.200 6.207 5.928 3-7/16 3.506 3.370
3-3/4 3.7500 5-3/4 5.750 5.562 6.640 6.341 3-11/16 3.670 3.616
4 4.0000 6-1/8 6.125 5.925 7.073 6.755 3-15/16 4.014 3.862

Weight Chart Of SS 347/347H Nuts

Size Finished Hex Heavy Hex Finished Jam Heavy Hex Jam Square Heavy Square
1/2″ Nut 3.75 6.54 2.62 4.00 5.78 7.87
5/8″ Nut 7.33 11.9 4.93 6.96 10.8 14.3
3/4″ Nut 11.9 19.3 7.70 11.0 15.4 23.5
7/8″ Nut 19.0 29.7 12.0 16.7 24.5 36.2
1″ Nut 28.3 42.5 17.6 23.5 36.3 51.5
11/8″ Nut 40.3 59.2 24.7 32.4 52.5 72.4
11/4″ Nut 54.3 78.6 36.1 45.8 70.6 95.5
13/8″ Nut 73.0 102 47.9 59.3 94.5 125.0
11/2″ Nut 94.3 131 60.9 74.8 122 161
15/8″ Nut 162 91.6
13/4″ Nut 151 204 100 114
17/8″ Nut 241 134
2″ Nut 224 299 140 165
21/4″ Nut 419 227
21/2″ Nut 564 332
23/4″ Nut 738 429
3″ Nut 950 545
31/4″ Nut 1194 651
31/2″ Nut 1526 851
33/4″ Nut 1812 1005
4″ Nut 2180 1200

Test Certificates Of Stainless Steel 347/347H Nuts

  • Mill Test Report
  • Raw Materials Certificate
  • EN 10204/3.1B
  • Third Party Inspection Report
  • 100% Radiography Test Report

Stock List Of Stainless Steel 347/347H Nuts

  • 347H Stainless Steel Coupling Nut
  • UNS S34709 Square Nut
  • ASME SA194 347 Stainless Steel Flange Lock Nut
  • ASTM A194 SS 347H A2-70 Nuts
  • Stainless Steel 347 Heavy Hex Nuts
  • Stainless Steel SUS 347H Serrated Flange Nut
  • Stainless Steel ASTM A194 347H Hex Nuts
  • SS 347H Machine Nuts Stockist
  • Stainless Steel 347H Nuts
  • Stainless Steel 347 Hexagon Nuts
  • DIN 1.4961 Wing Nut
  • ASME SA194 347 Stainless Steel T Nuts
  • 347H Stainless Steel Acorn Nuts
  • SS 347H Cap Nut Supplier
  • Stainless Steel 347 Nut
  • 347 Stainless Steel A2-80 Nuts
  • 347 SS Coupling Nut Exporter
  • AISI 347H Castle Nut
  • Stainless Steel 347 Jam Nut Distributor
  • 347H Stainless Steel Panel Nuts
  • Stainless Steel 347H High Nut
  • Stainless Steel 347 Industrial Nuts Price
  • Grade 347H SS K Lock Nut Manufacturer
  • DIN 1.4550 Nyloc Nuts
  • 347 Stainless Steel Flex Lock Nut
  • UNS S34709 2 Way Lock Nut
  • 347H SS Heavy Hex Nuts Dealer
  • UNS S34700 Lug Nuts
  • ASTM A194 347 Stainless Steel Slotted Nut
  • 1.4550 Auto Lock Nuts
  • 347H Stainless Steel Eye Nuts
  • 347H Stainless Steel Flange Lock Nut
  • Stainless Steel 347H Nylon Lock Nut
  • Stainless Steel 347 Nylon Insert Nuts

Chemical Composition of SS 347/347H Nuts

GradeCMnSiPSCrMoNiFe
SS 3470.08 max2.0 max1.0 max0.045 max0.030 max17.00 – 20.0010xC – 1.109.00 – 13.0062.74 min
SS 347H0.04 – 0.102.0 max1.0 max0.045 max0.030 max17.00 – 19.008xC – 1.109.0 -13.063.72 min

Mechanical Properties of Stainless Steel 347/347H Nuts

DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
8.0 g/cm31454 °C (2650 °F)Psi – 75000 , MPa – 515Psi – 30000 , MPa – 20535 %

Stainless Steel 347/347H Nuts Uses and Application

  • Nuclear Energy Sector
  • Offshore & Chemical Industry
  • Engineering & Aerospace Industry
  • Automotive industry
  • Oil & Gas Industries
  • Power Generation
  • Architectural Trim and Molding
  • Kitchen Benches, Sinks, Equipment
  • Food Processing Equipment
application
application1
application2
application3
application4
