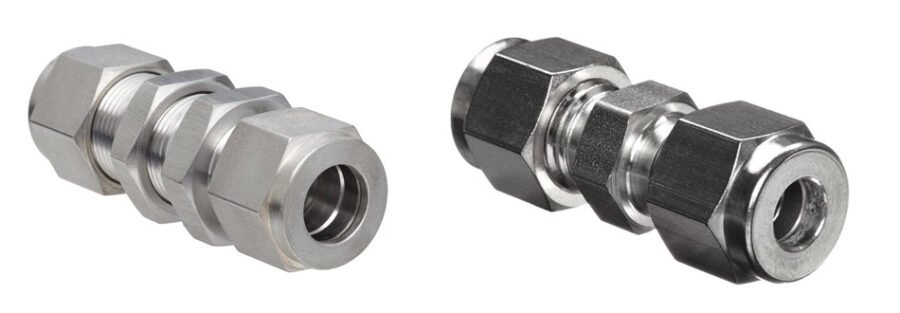

Union tube fittings, also known as tube unions, are essential components used in various industries for joining and connecting tubes or pipes. These fittings play a vital role in creating leak-proof connections and facilitating fluid or gas transfer between different sections of a system. They offer versatility, reliability, and ease of installation, making them a popular choice in diverse applications.
Union tube fittings consist of three main components: a nut, a female ferrule, and a male ferrule. The male ferrule is inserted into the female ferrule, and the nut is tightened to create a secure connection. This design allows for quick assembly and disassembly without damaging the tubes or requiring specialized tools.
One of the significant advantages of union tube fittings is their ability to accommodate angular misalignment or slight tube movement. This flexibility ensures stress-free connections, reducing the risk of leaks and enhancing system integrity. Additionally, union fittings can be easily repositioned or replaced when necessary, simplifying maintenance and repairs.
These fittings are available in various materials, including stainless steel, brass, and carbon steel, allowing for compatibility with different fluids and environments. They are suitable for a wide range of applications such as plumbing, HVAC systems, hydraulic systems, and industrial processing.
Type of Union Tube Fittings
Monel 400 Union Instrumentation Fittings
Brass Twin Ferrule Union Fittings
Hastelloy C276 Union Compression Fittings
SMO 254 Union Fitting
